Intel® Server D50DNP Family Integration and Service Guide

137

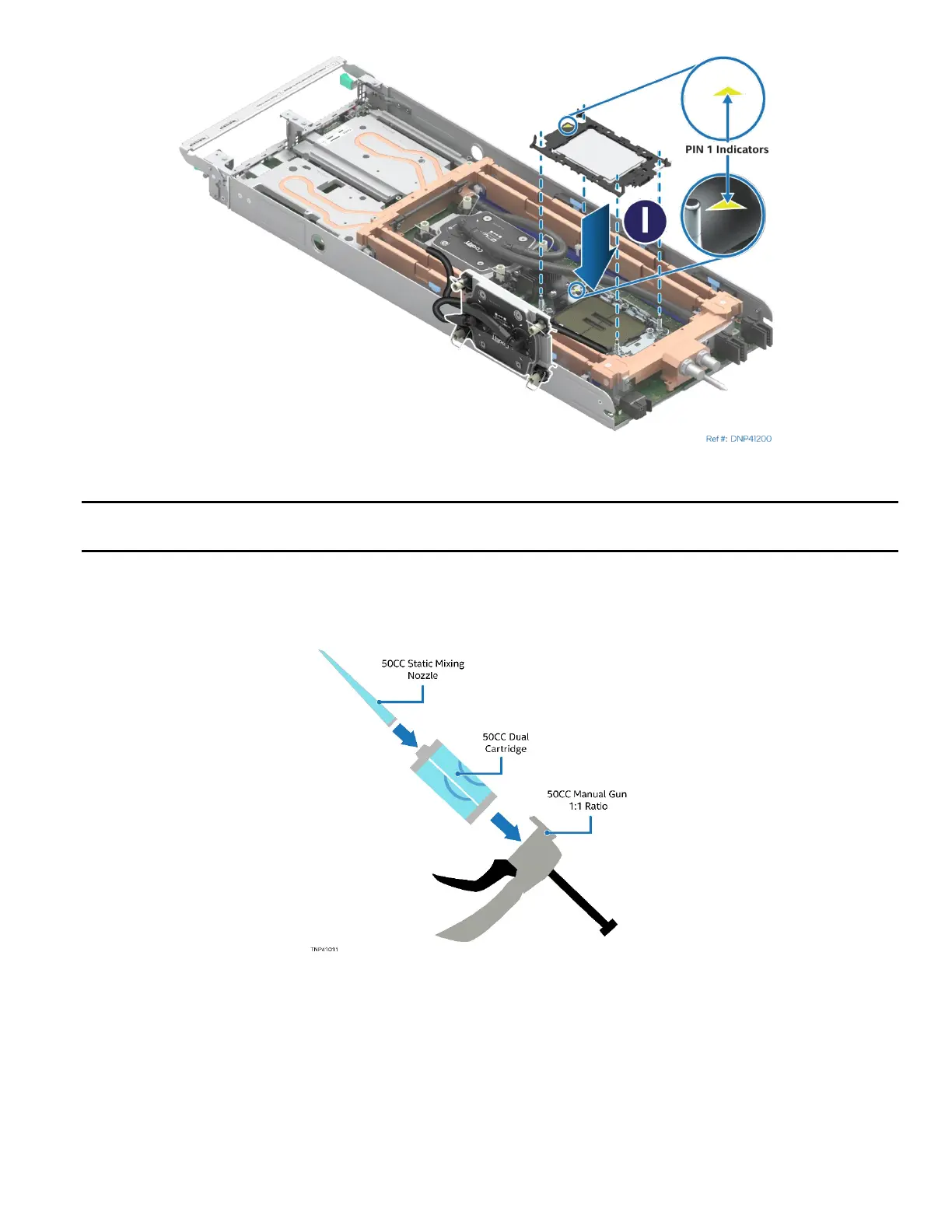

Figure 172. Processor Installation onto Server Board

Caution: Processor socket pins are delicate and bend easily. Use extreme care when placing the

processor onto the processor socket. Do not drop it.

18. Align the Pin 1 indicators of the processor carrier clip and processor with the Pin 1 indicator on the

bolster plate. Place the processor carrier clip and processor on the socket (see Letter I).

Figure 173. Assembling the Manual Applicator

19. Assemble the Bergquist SS95407 applicator, Bergquist GF3500S35 thermal gap filler cartridge, and

Bergquist SS95437 nozzle as shown in the figure.
