Intel® Server D50DNP Family Integration and Service Guide

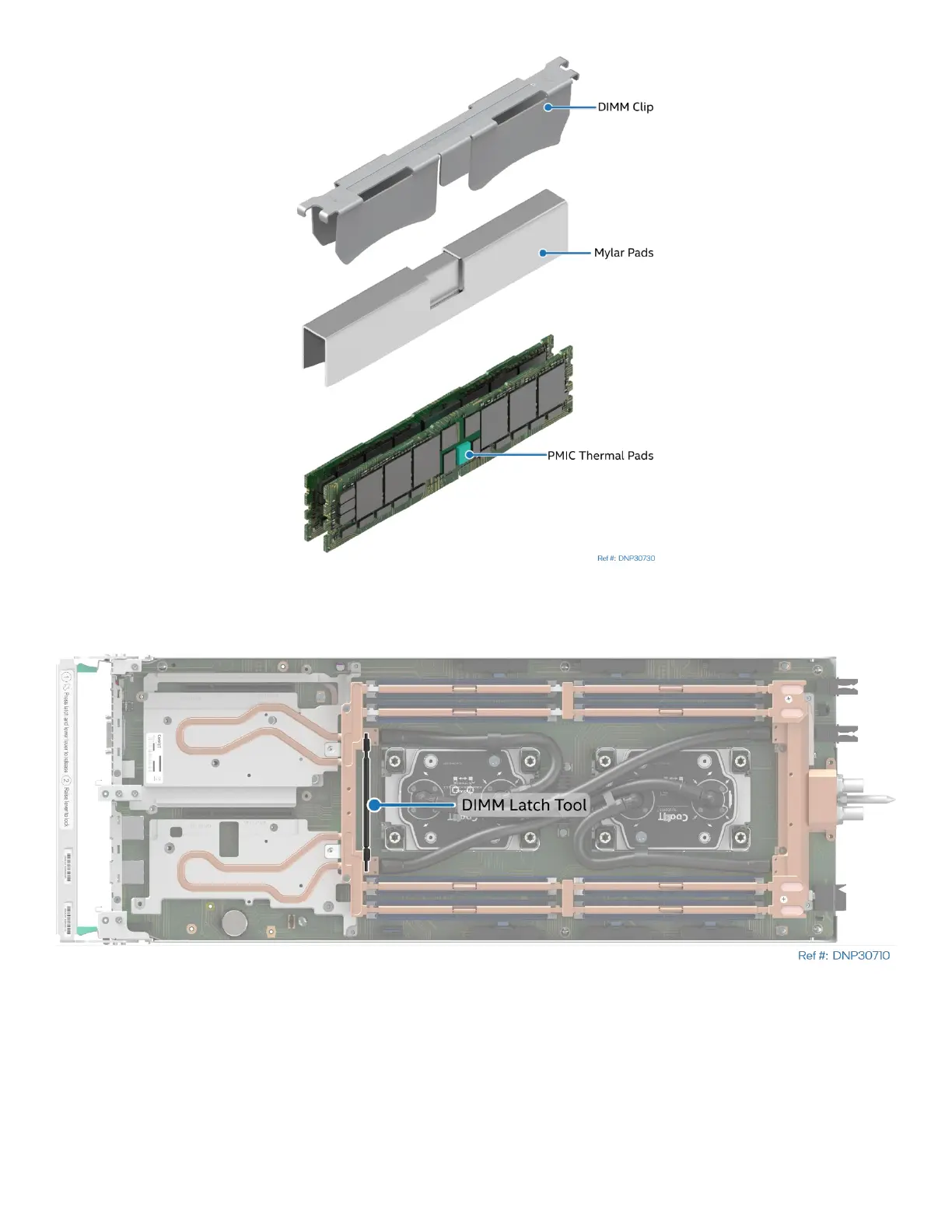

Figure 48. Memory Cooling Kit

Figure 49. DIMM Latch Tool Location

1. Detach the DIMM latch tool from the cooling loop

2. Carefully remove the memory module from its packaging, taking care to handle it only by its outer

edges.
