3. System Options / Accessory Kit Installation
This chapter provides instructions for the integration of system options and other accessories. If your
integrated Intel server did not come preinstalled with processors, memory, or power supplies, installation
procedures for these components are in Chapter 2.
Before You Begin
Before integration of any system components, review all safety and ESD precautions in the Safety Warnings
section at the beginning of this service guide.
System Reference
In the following procedures, all references to left, right, front, back, top, and bottom assume that the reader
is facing the front of the chassis and the front of a module as shown in the following figure (2U air-cooled
management module shown).

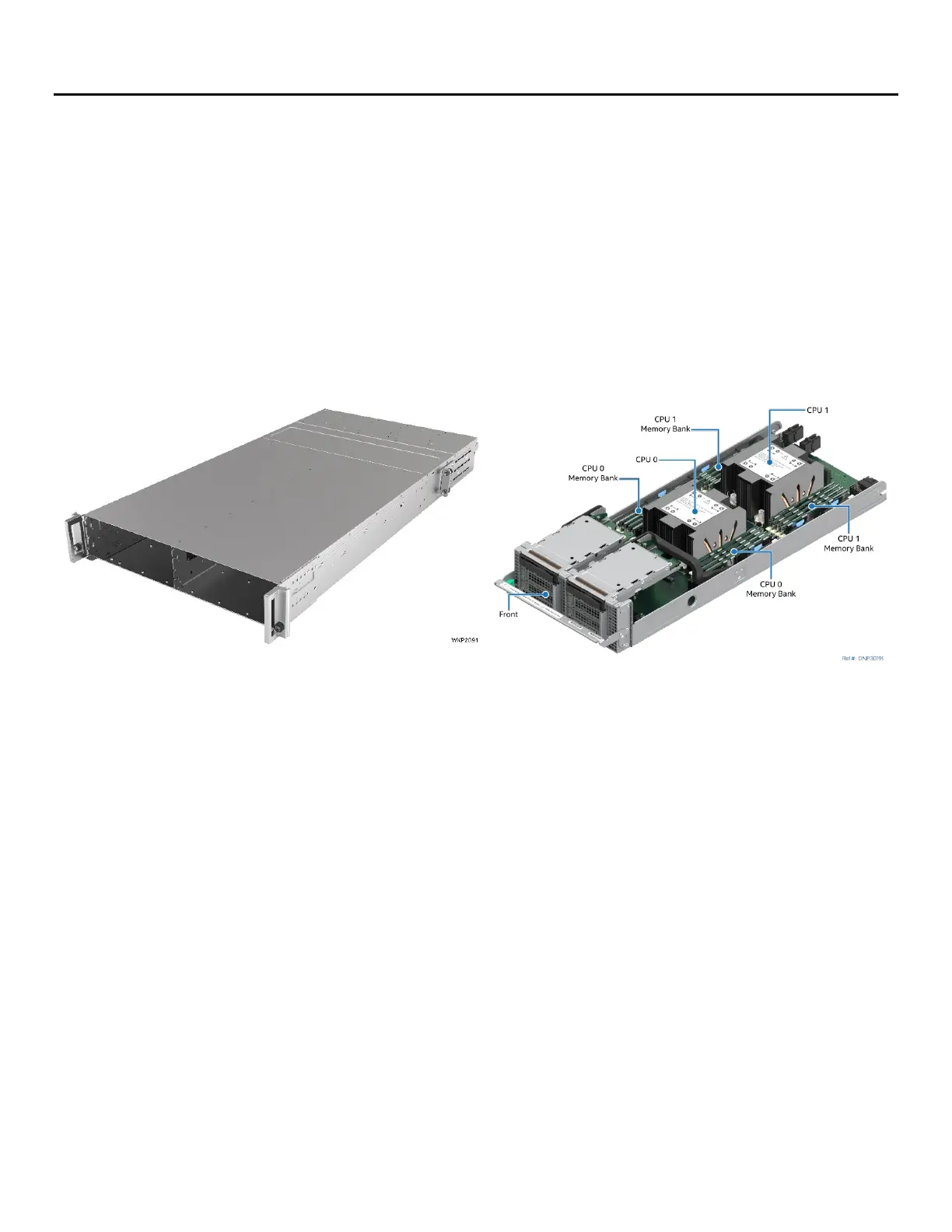

Figure 55. System Directional Reference
Instruction Format
Each procedure described in this chapter follows an illustration first format. This format gives the reader the
option to follow a quicker path to component integration by first seeing an illustration of the intended
procedure. If necessary, the reader can then follow the step-by-step instructions that accompany each
procedure.
3.1 Installing the Chassis into a Rack
The chassis installation into a rack can be performed at any time throughout this chapter while the modules
are being integrated with system options and accessories.
Before following the instructions in this section, remove all modules from the server chassis (see the details
in Section 3.2.1). If the rail kit is already installed, proceed to Section 3.1.2.
1U Air-Cooled Compute Module
2U Air-Cooled Management Module
