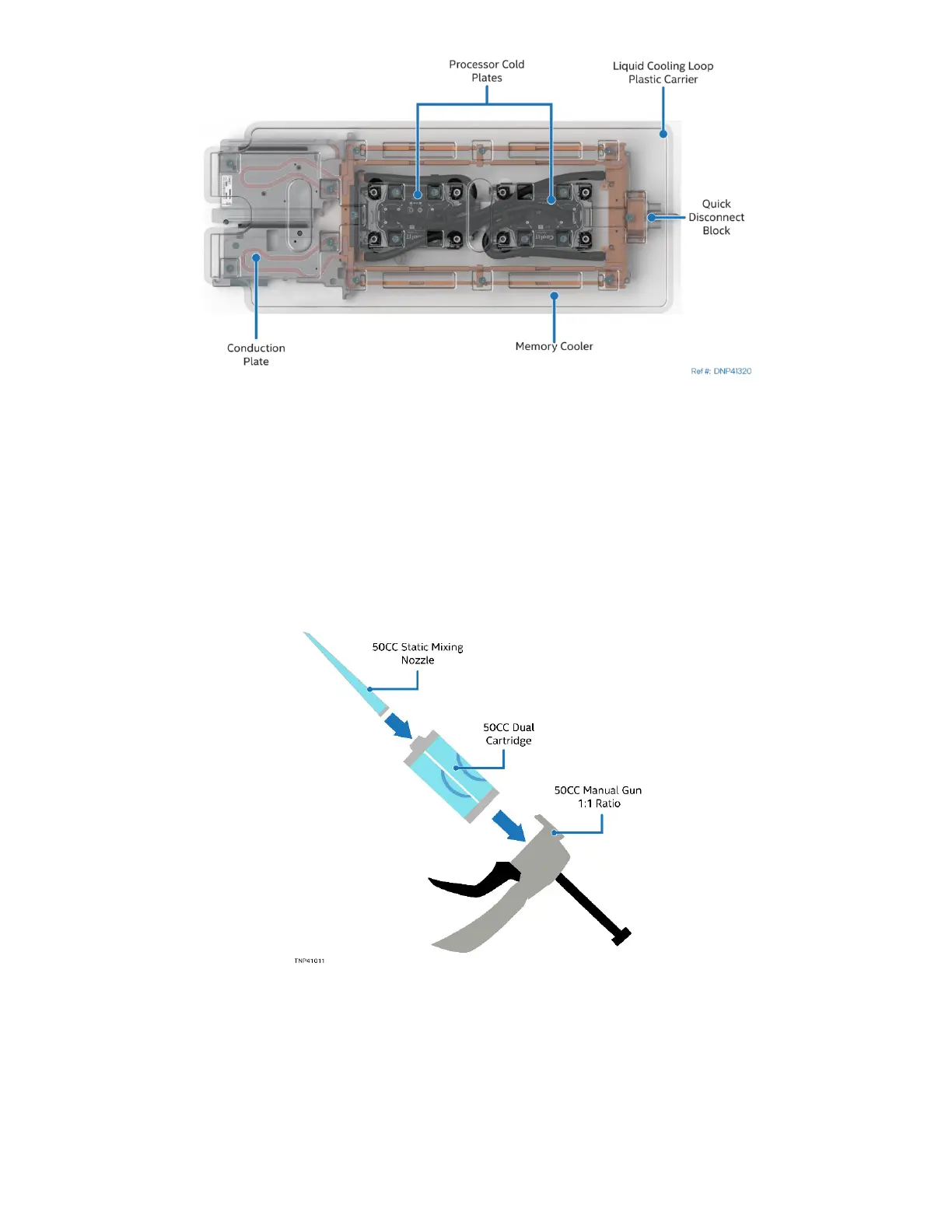

Figure 38. Liquid-Cooling Loop Components

Required Tools and Supplies

• Anti-static wrist strap and conductive workbench pad (recommended)

• Phillips* head screwdriver #2

• T30 Torx* screwdriver

• Liquid-cooling VR TIM application tools (iPC TNPLCVRTLS)

• Liquid-cooling VR TIM application nozzles (iPC TNPLCVRTNZ)

• Liquid-cooling VR TIM compound (iPC TNPLCVRCMPD)

Figure 39. Assembling the Manual Applicator

1. Assemble the Bergquist SS95407* applicator, Bergquist GF3500S35* thermal gap filler cartridge, and

Bergquist SS95437* nozzle as shown in the previous figure. Ensure that the thermal gap filler has not

expired.
