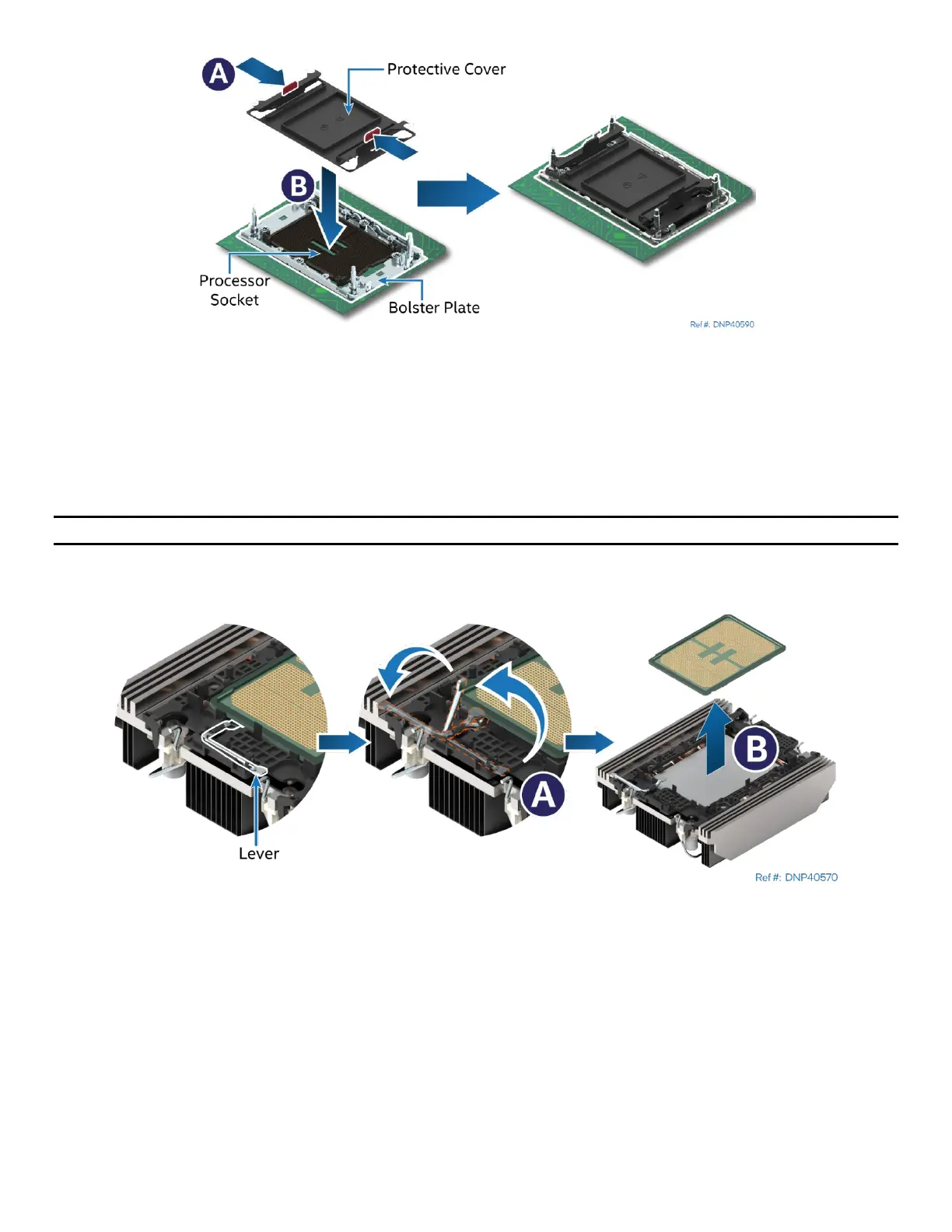

Figure 133. Reinstall the Socket Cover

• Squeeze the finger grips at each end of the cover (see Letter A).

• Carefully lower the cover over the four alignment pins of the bolster plate and onto the

processor socket (see Letter B).

• Release finger grips to lock the cover in place.

• Ensure that the socket cover is locked in place.

Caution: Do not press down on the center of the socket cover.

7.3.1.2 PHM Disassembly

Figure 134. Processor Removal from PHM Assembly

1. While holding down the PHM, rotate the lever (see Letter A) from right to left until the processor lifts

free from the processor carrier clip.

2. Holding down the processor carrier clip, carefully lift the processor out of the processor carrier clip

(see Letter B).
