Intel D50DNP Series - Figure 66. 1 U MCIO* Riser; Figure 67. 1 U Standard Riser

To Next Page

To Previous Page

Intel® Server D50DNP Family Integration and Service Guide

Important Note: D50DNP1MHEVAC does not support a low-profile PCIe* 5.0 add-in card on riser slot 2

because the EVAC extension occupies this space. M.2 SSD is still supported on riser slot 2.

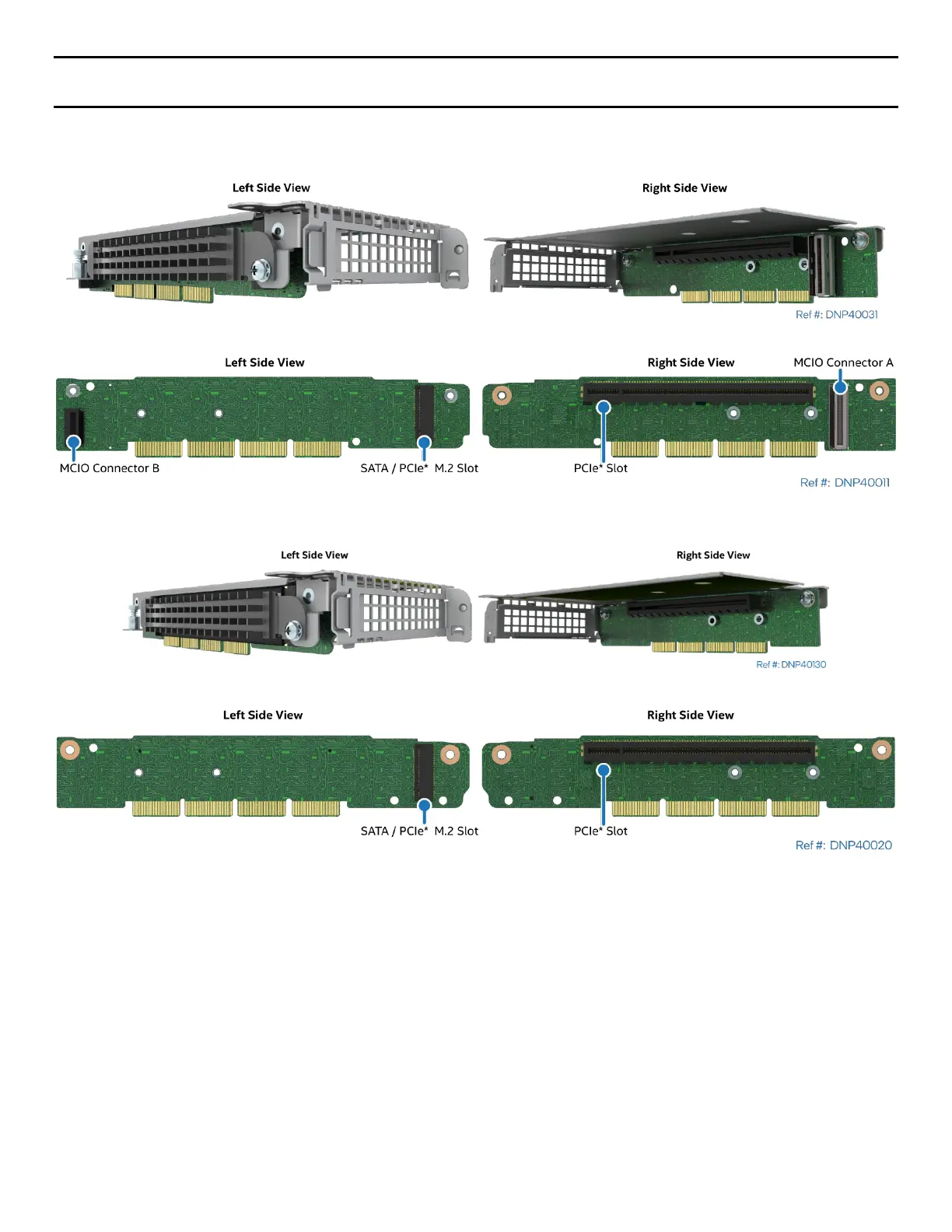

Figure 66. 1U MCIO* Riser

Figure 67. 1U Standard Riser

Unlike 1U riser cards where two types of cards are available, there is only one type of the 2U riser card. It can

go interchangeably in riser slot 1 or riser slot 2 on the server board. The 2U riser card has a mini cool edge

I/O (MCIO*) connector that is cabled to the MCIO connector on the server board.
