Intel D50DNP Series - Figure 170. Installing Processor Carrier Clip Onto Processor - Part 2; Figure 171. Socket Protective Cover Removal

To Next Page

To Previous Page

Intel® Server D50DNP Family Integration and Service Guide

136

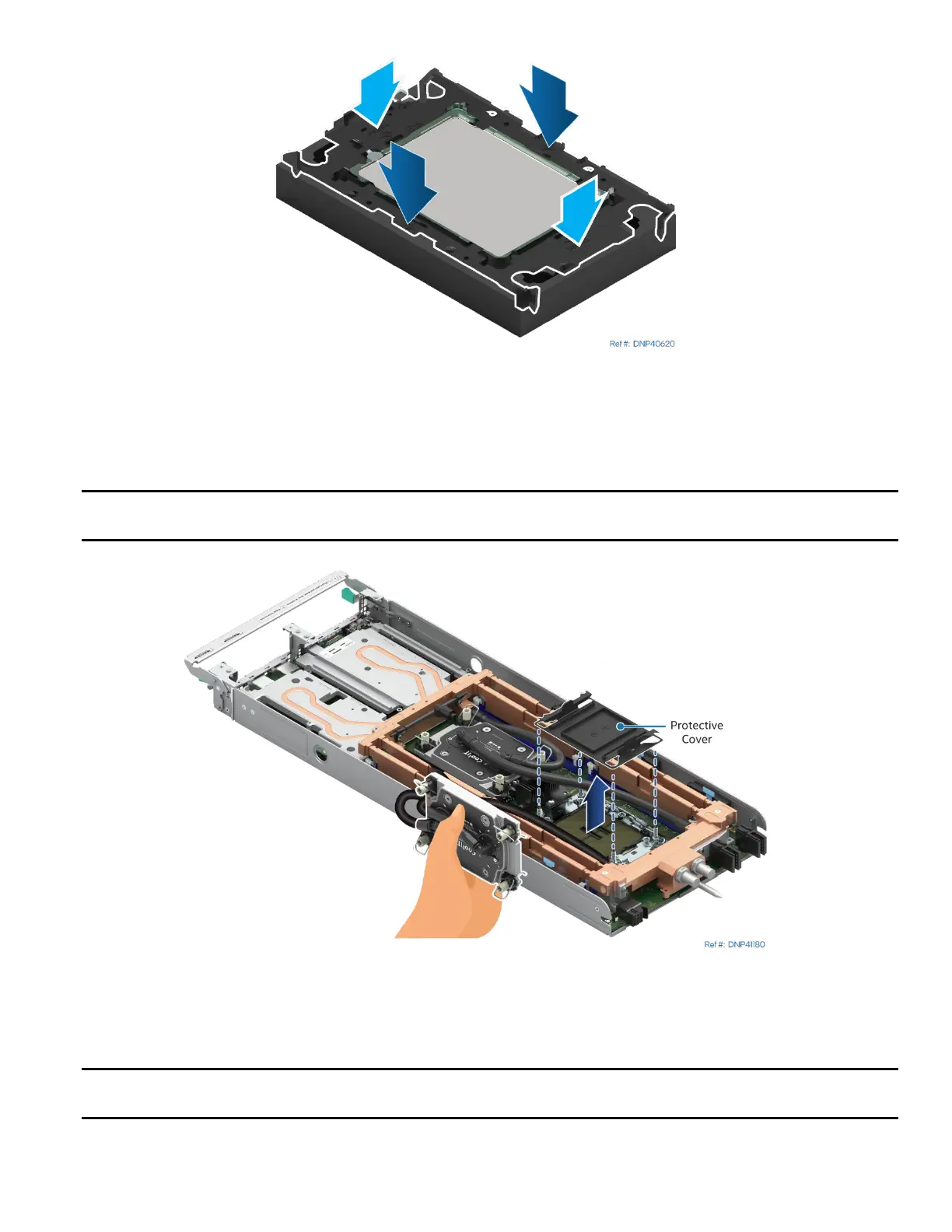

Figure 170. Installing Processor Carrier Clip onto Processor – Part 2

14. Gently press down simultaneously on two opposite sides of the processor carrier clip until it clicks in

place.

15. Repeat step 14 for the other two sides.

Caution: Do not touch the socket pins. The pins inside the processor socket are extremely sensitive. A

damaged processor socket may produce unpredictable system errors.

Figure 171. Socket Protective Cover Removal

16. Remove the socket protective cover by squeezing the finger grips and pulling the cover up.

17. Ensure that the socket is free of damage or contamination before installing the PHM.

Caution: If debris is observed, blow it away gently with an air blower. Do not remove it with a hard tool,

such as with tweezers.
