Intel® Server D50DNP Family Integration and Service Guide

168

7.9 PCIe* Accelerator Module Add-In Card Replacement (D50DNP2MFALAC

Module)

The following instructions are used to replace the accelerator add-in cards on the PCIe* accelerator module

(D50DNP2MFALAC).

Required Tools and Supplies

• Replacement accelerator add-in card(s)

• Anti-static wrist strap and conductive workbench pad (recommended)

• Phillips* head screwdriver #1

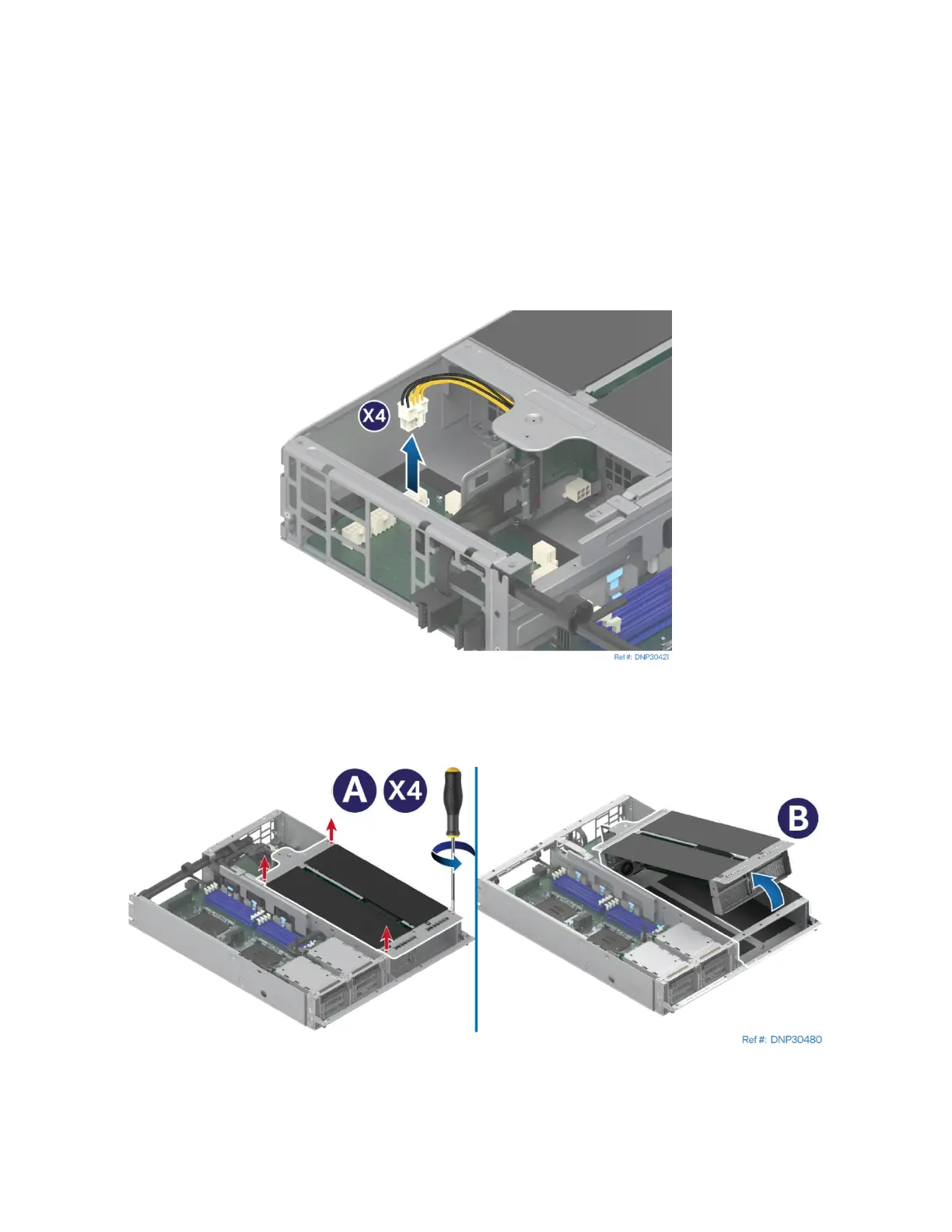

Figure 223. Disconnecting Add-In Card Power Cable

1. Disconnect all accelerator add-in card power cables from the connectors on the power board.

Figure 224. Removing PCIe Accelerator Module Riser Assembly

2. Loosen the four captive screws on the PCIe accelerator module assembly (see Letter A).

3. Carefully lift the PCIe accelerator module riser assembly up slightly. Then, tilt the front side away

from the module (see Letter B).
