Intel® Server D50DNP Family Integration and Service Guide

3.3.1 Air Duct Removal (Half-width Modules)

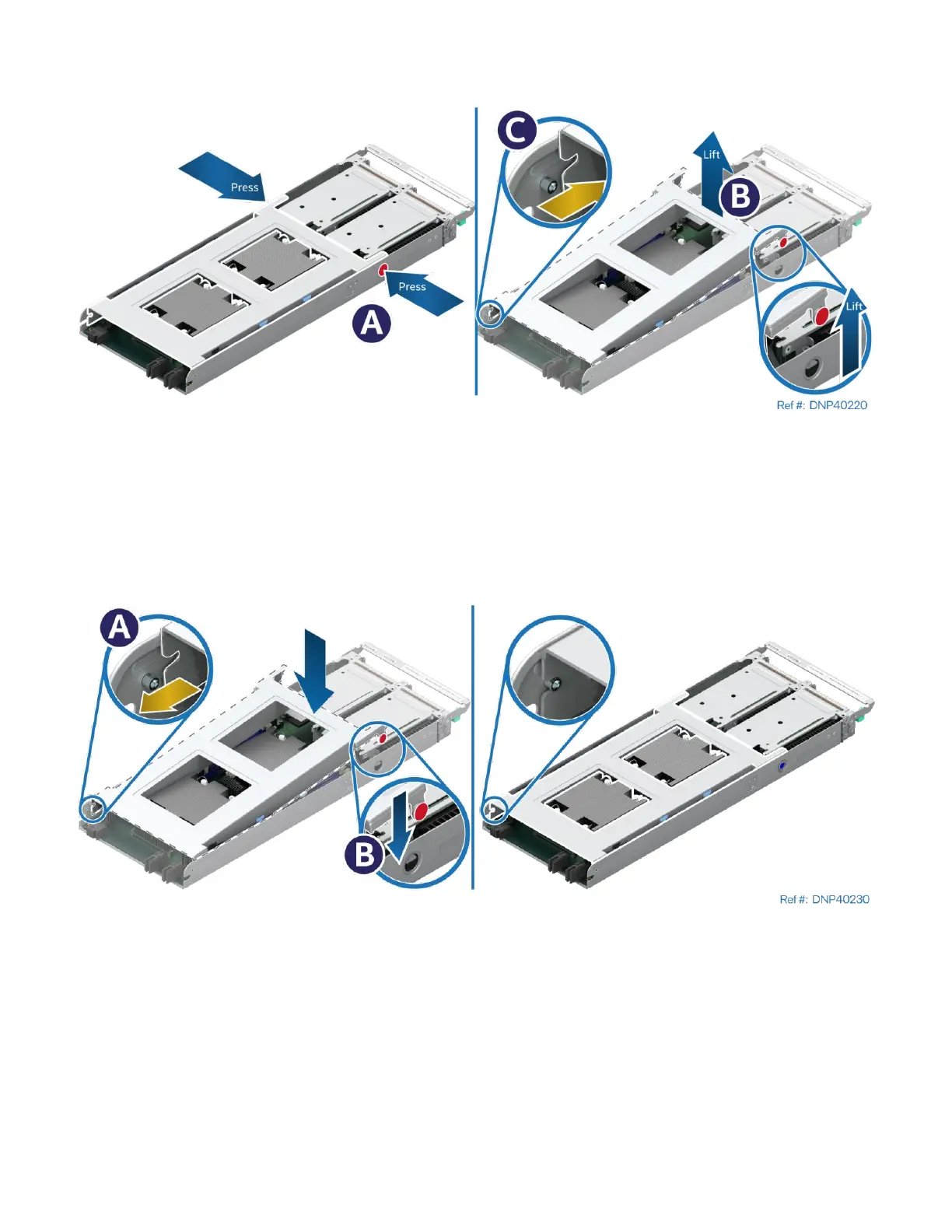

Figure 61. Removing the Air Duct (Half-width Modules)

1. Press the latches on both sides of the module inwards (see Letter A).

2. Carefully lift the front edge of the air duct (see Letter B).

3. Pull the air duct away from the module (see Letter C).

3.3.2 Air Duct Installation (Half-width Modules)

Figure 62. Installing the Air Duct (Half-width Modules)

1. Align and attach the hinge slots on the back end of the air duct with the hinge posts on both sides of

the module (see Letter A).

2. Lower the air duct until both the left and right side latches snap into place (see Letter B).

1U module shown
