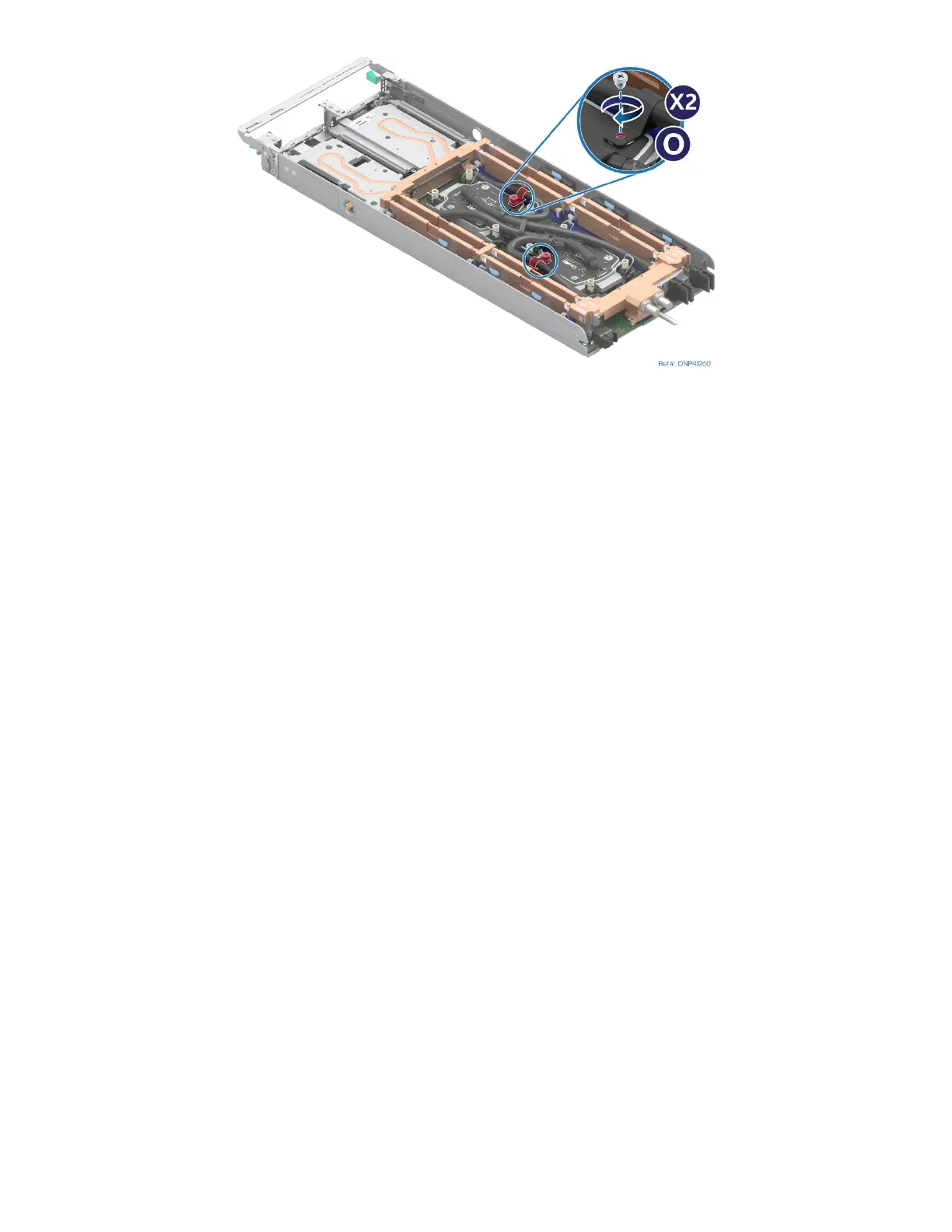

Figure 178. Installing the Screws on Top of Processor Cold Plate

25. Install the screws and the clips that hold the outer hoses on the top of the processor cold plate

(see Letter O).
