Intel D50DNP Series - Figure 28. Socket Protective Cover Removal; Figure 29. PHM Alignment with the Socket Assembly

To Next Page

To Previous Page

Intel® Server D50DNP Family Integration and Service Guide

Caution: Do not touch the socket pins. The pins inside the processor socket are extremely sensitive. A

damaged processor socket may produce unpredictable system errors.

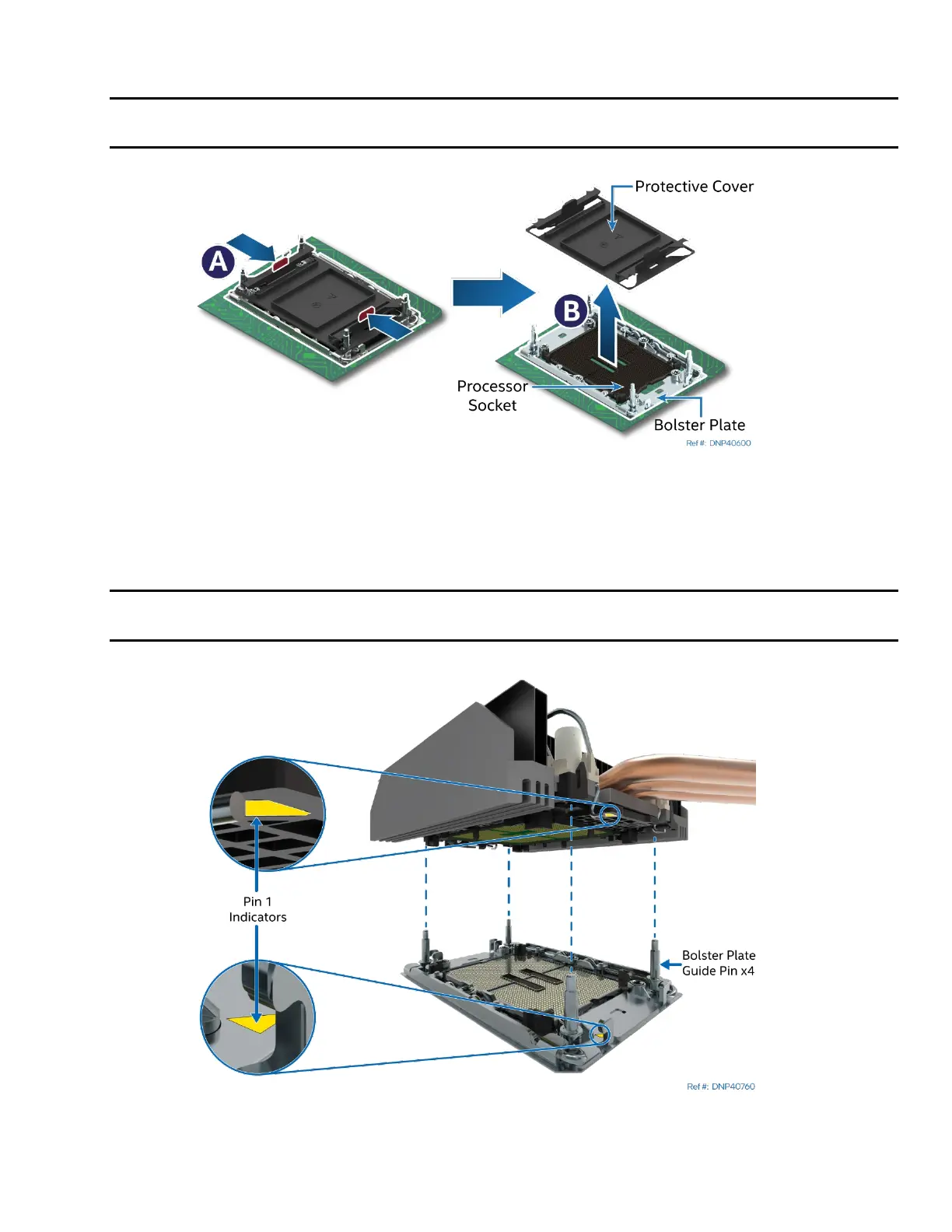

Figure 28. Socket Protective Cover Removal

4. Remove the socket protective cover by squeezing the finger grips (see Letter A) and pulling the cover

up (see Letter B).

5. Ensure that the socket is free of damage or contamination before installing the PHM.

Caution: If debris is observed, blow it away gently with an air blower. Do not use tweezers or any

other hard tools to remove the debris.

Figure 29. PHM Alignment with the Socket Assembly
