Intel® Server D50DNP Family Integration and Service Guide
94
6. System / Module Features Overview
This chapter provides service personnel a reference to identify and locate the features associated with the
Intel® Server System D50DNP.
6.1 System Feature Identification
All systems in the Intel® Server D50DNP Family feature front-loading modules. The figures on the following
pages provide a quick reference, identifying the key features of all supported system configurations.

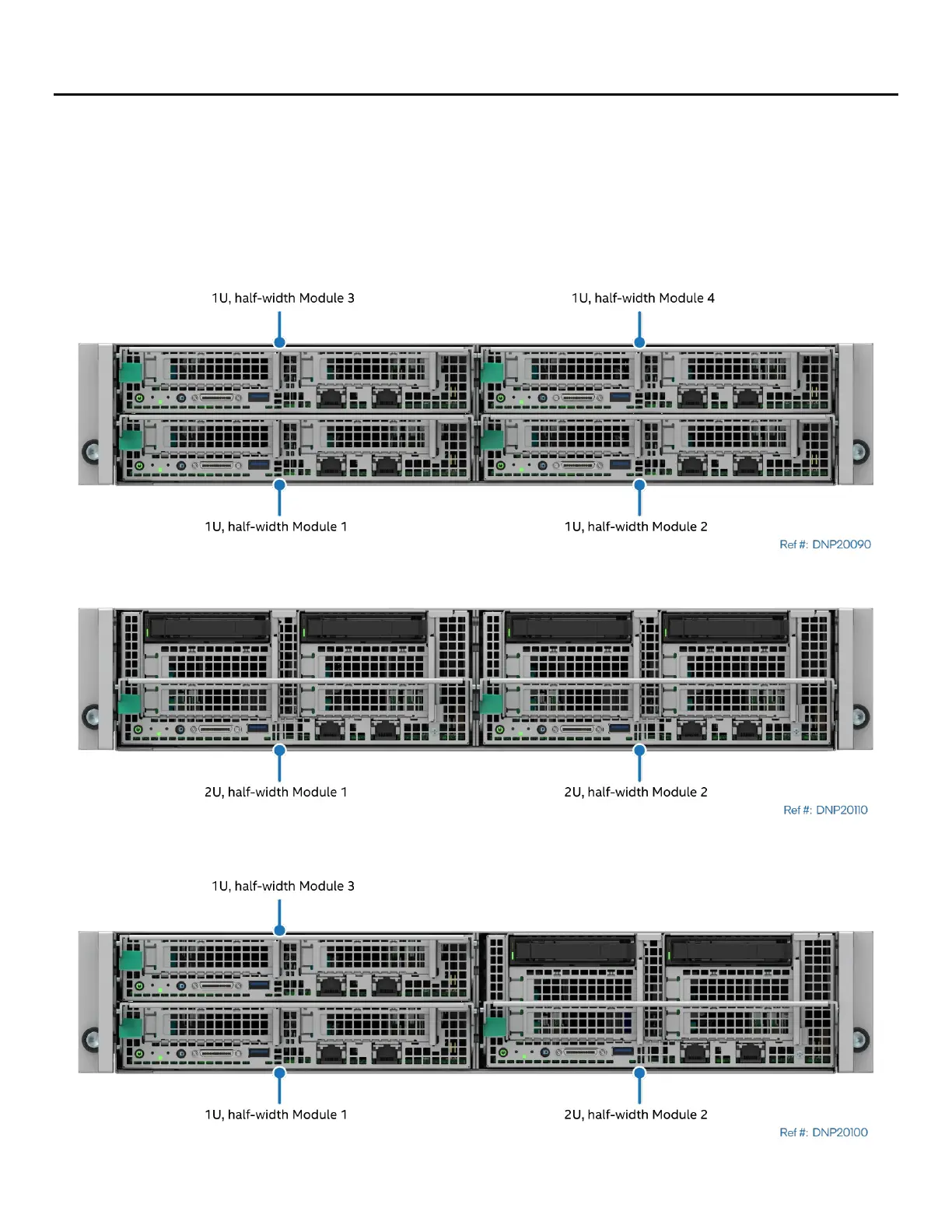

Figure 103. Module Identification for Four Half-Width Module System Configuration
Figure 104. Module Identification for Two Half-Width Module System Configuration
Figure 105. Module Identification for Three Half-Width module System Configuration
