Intel® Server D50DNP Family Integration and Service Guide

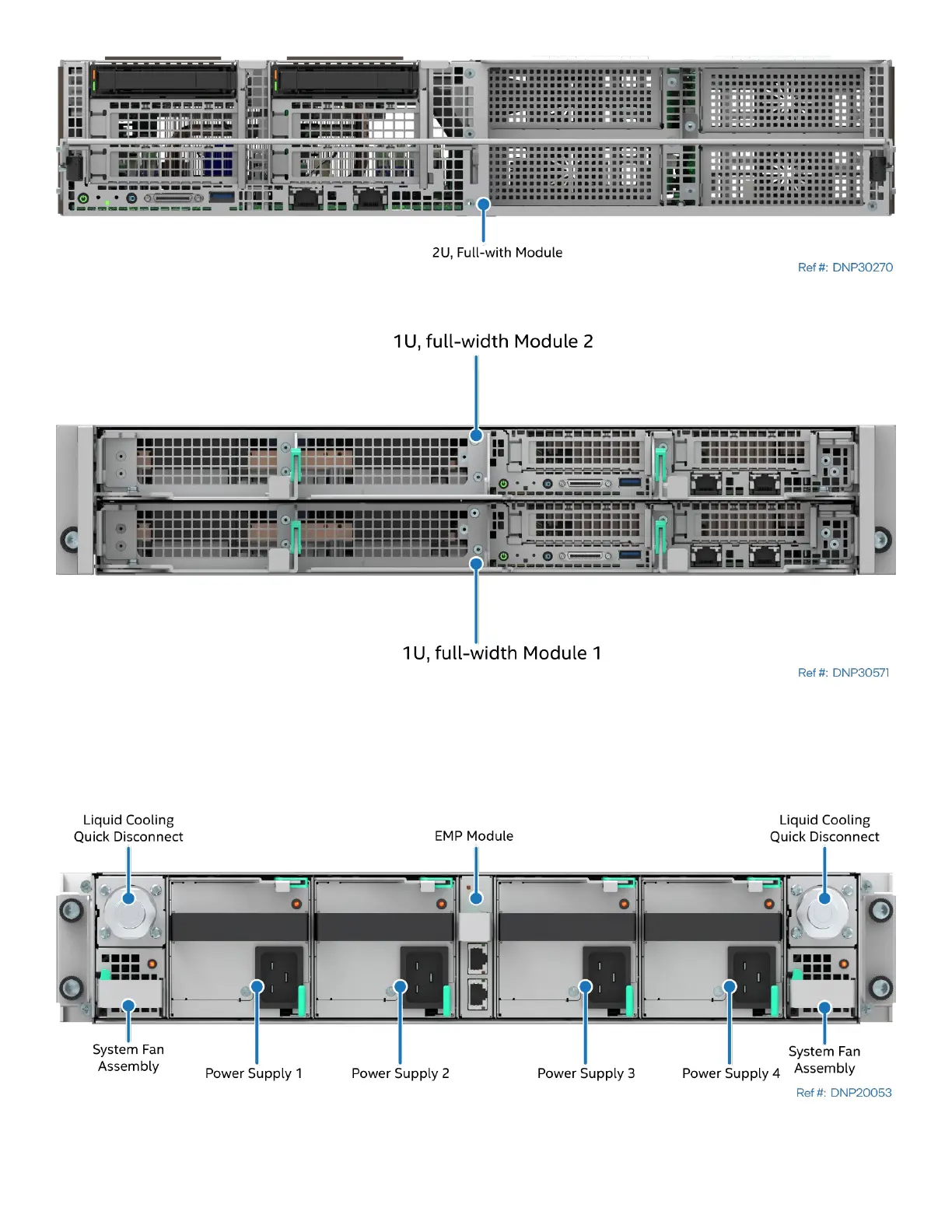

Figure 106. Module Identification for One Full-Width Module System Configuration

Figure 107. Module Identification for Two Full-Width Module System Configuration

Systems are offered with either liquid-cooling or air-cooling options. The following figures identify key

system features for both cooling options.

Figure 108. Liquid-Cooled System Rear View
