Keithley 4200-SCS User Manual

2-50 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 2: Model 4200-SCS Software Environment Model 4200-SCS User’s Manual

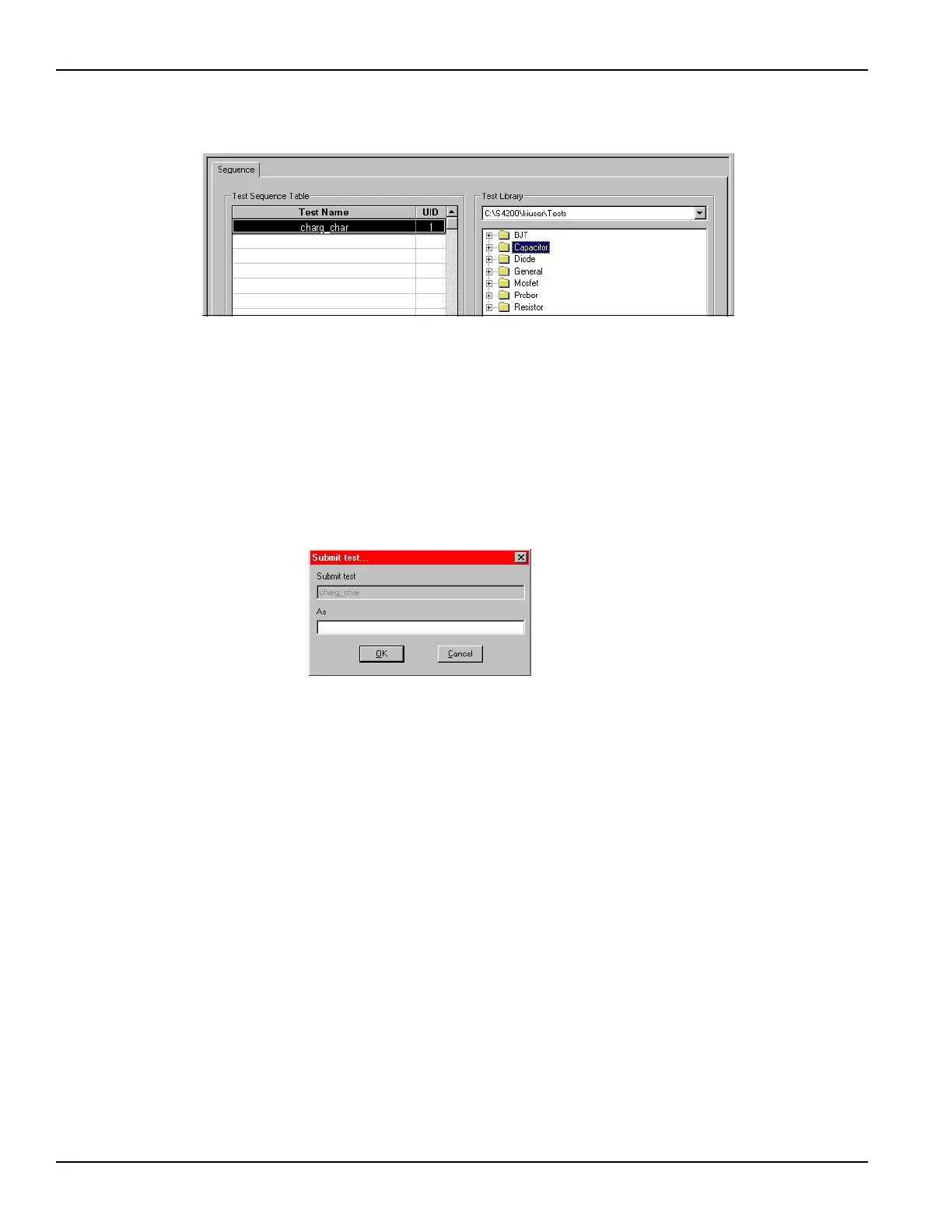

Figure 2-41
Selected ITM and destination folder
6. Do one of the following:
• If you wish to submit the selected tests with the original names, click the Submit >>
button in the device plan window. The selected tests is submitted to the chosen folder.
Stop here. You have finished the test submission procedure.
• If you wish to submit the selected tests under a different names, click the Submit As >>
button in the device plan window. The submit test dialog box opens, displaying the
original name of the test (or, if you selected multiple tests, displaying the original name of
one of the tests). See Figure 2-42.
Figure 2-42
Submit test dialog box
7. In the As edit box of the Submit test dialog box, type the submittal name for the test.
8. Click OK. One of the following occurs:
• If you selected only one test in the Test Sequence Table, the selected test is submitted
to the chosen folder under the new name. Stop here. You have finished the test
submission procedure.
• If you selected multiple tests in the Test Sequence Table, the following occurs:
• The test that you renamed in Step 7 is submitted to the chosen folder under the new
name.
• Then, another Submit test dialog box opens for another selected test.
9. Repeat Steps 7 and 8 until all of the selected tests have been submitted (until no more
Submit test dialog boxes open).
