1-74 Service Manual
4023-001
CD Aligning Motor Control
The CD aligning motor sequences the movement of the CD aligning
plate.

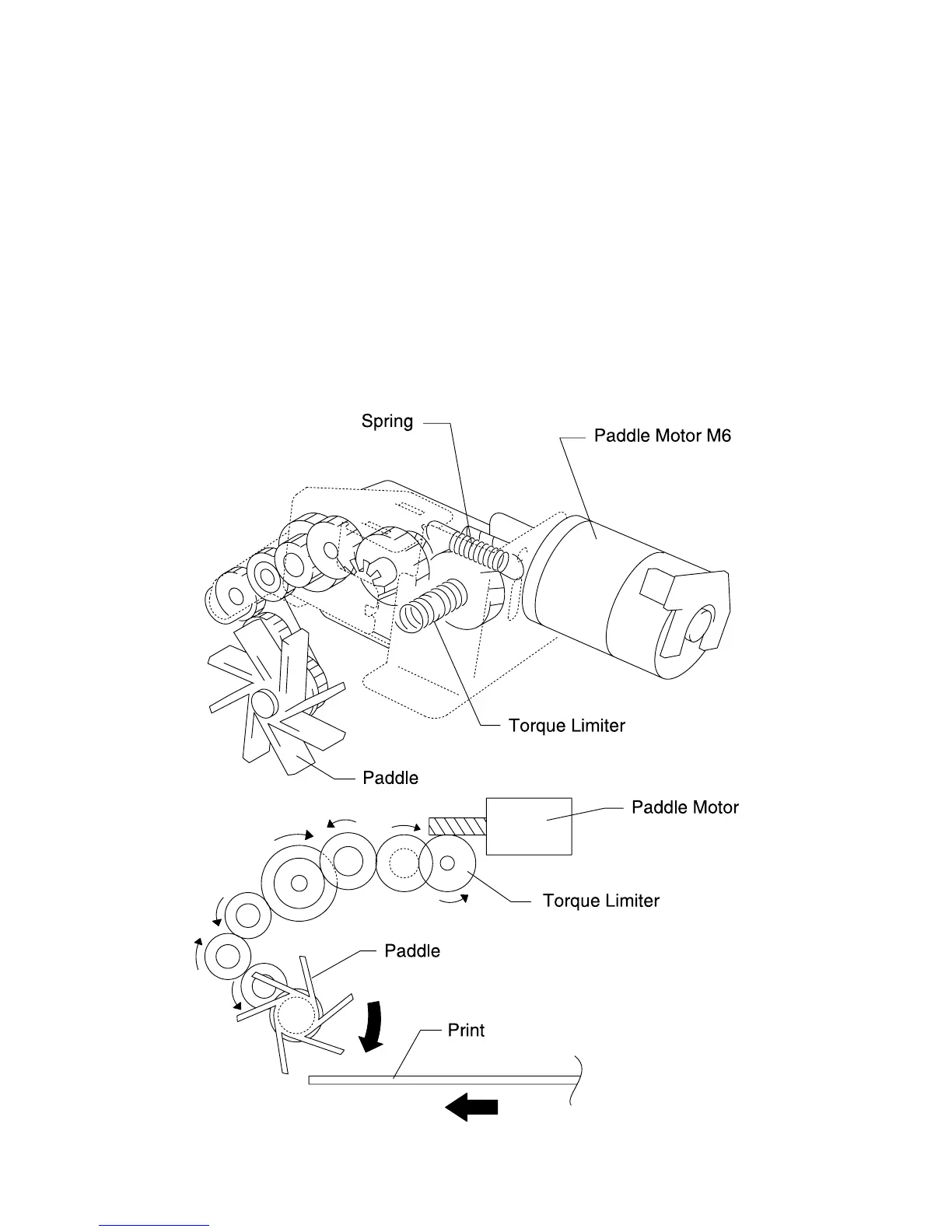

Paddle
The paddle moves the print, which has been fed by the CD aligning
plate, toward the stapling corner. The gear is normally locked by the
torque limiter and, when paddle motor turns forward, the paddle
lowers. As the tension of the spring exceeds the force of the torque
limiter, the rotation of the motor transmits to the paddle through the
gear train.
