Lexmark Optra W810 - Right Door Switch (S3) Removal

Repair Information 4-43
4023-001
Right Door Switch (S3) Removal
1. Remove the 1st cassette.
2. Remove the front cover. (2 screws)
Note: When reinstalling the front cover, securely insert the
projections of the front cover into the appropriate cutouts of the
printer frame.

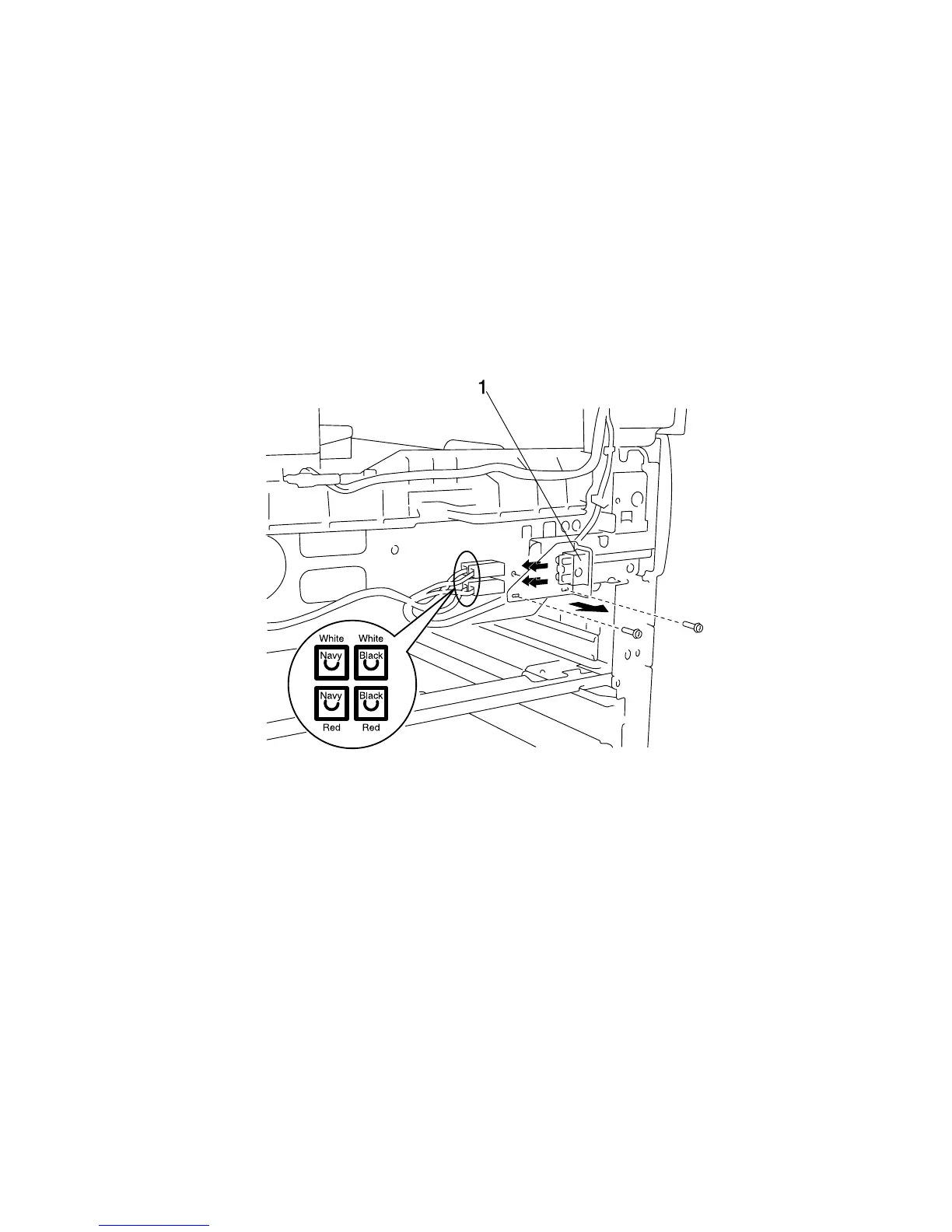

3. Remove the side switch S3 (1). (1 screw, 4 connectors)
