Locations 5-21
4023-001

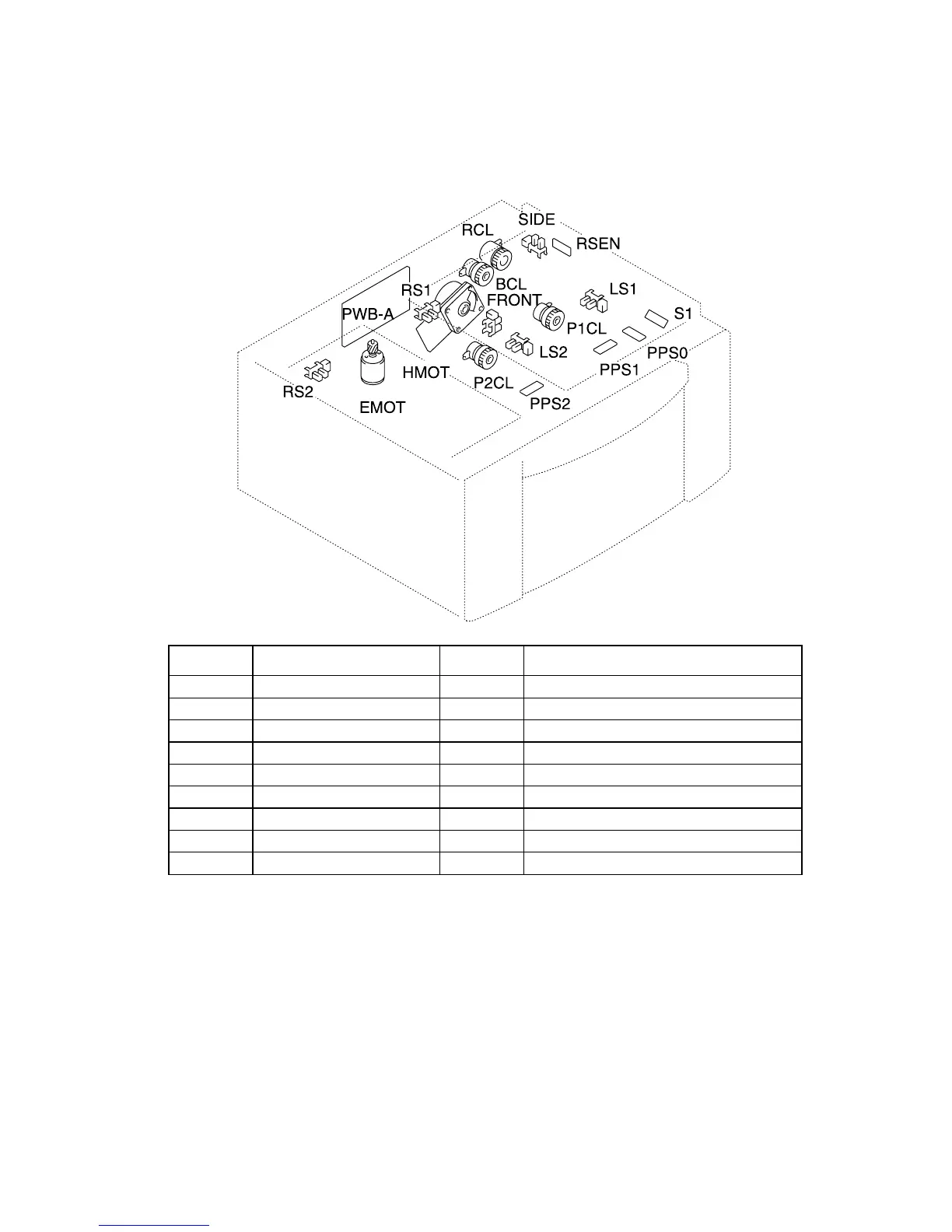

Paper Deck Electrical Components
Symbol Name Symbol Name
BCL Separator Clutch PPS1 Paper Empty Sensor 1
EMOT LCC Lift-Up Motor PPS2 Paper Empty Sensor 2
FRONT LCC Set Sensor PWB-A LCC Main Board
HMOT LCC Transport Motor RCL Registration Clutch
LS1 Lift-Up Sensor 1 RS1 Paper Near Empty Sensor 1
LS2 Lift-Up Sensor 2 RS2 Paper Near Empty Sensor 2
P1CL Take-Up Clutch 1 RSEN Registration Sensor
P2CL Take-Up Clutch 2 S1 Paper Standby Position Sensor
PPS0 LCC Take-Up Sensor SIDE Side Cover Set Sensor
