4-12 Service Manual
4023-001
3. Turn VR (d) to the full-counterclockwise position and check that
the corresponding LED (c) illuminates.
4. Load paper in the bin (b).

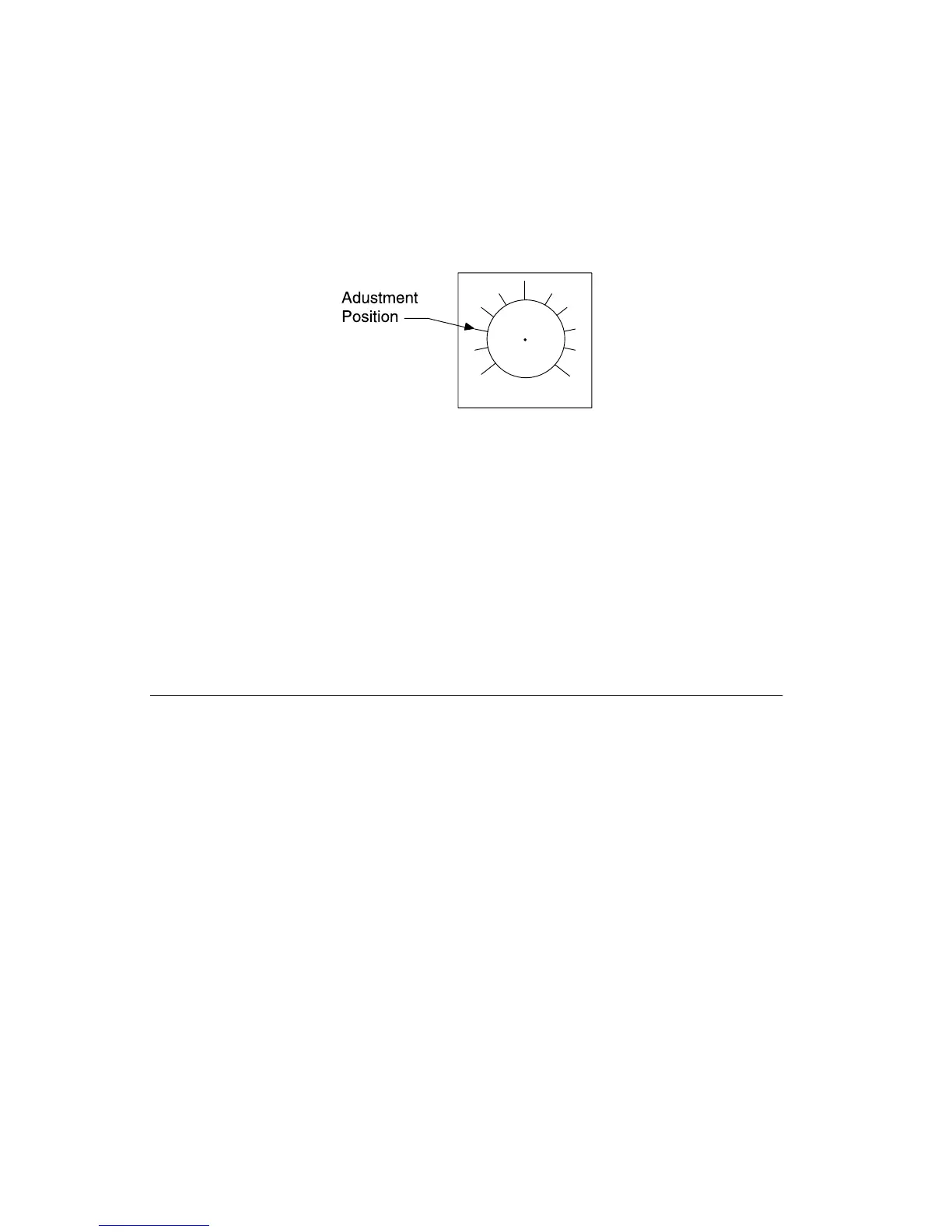

5. When the LED (c) extinguishes, adjust VR (d) to the second
graduation position from the full-counterclockwise position. This
completes the adjustment.
6. When LED (c) illuminates, slowly turn VR (d) to the right and
record the position where LED (c) illuminates. Record the
position as A.
7. Remove paper from bin (b).
8. Turn VR (d) to the full-clockwise position.
9. When LED (c) illuminates, record the position (all the way to the
right) as position B.
10. When the LED (c) goes off, slowly turn VR (d) counterclockwise
and record the position where LED illuminates as position B.
Resetting Maintenance Counters
Resetting Hole Punch Counter
When the hole punch box has been emptied, the hole punch counter
must be reset. Perform the following to reset the counter:
1. Turn the printer off.
2. Press Select and Return as you turn the machine on.
3. Select MAINT COUNTER from the Configuration Menu Group.
4. Scroll to Reset Hole Punch and press Select. The hole punch
counter resets while the following message displays:
Resetting
Hole Punch Count
