General Information 1-53
4023-001

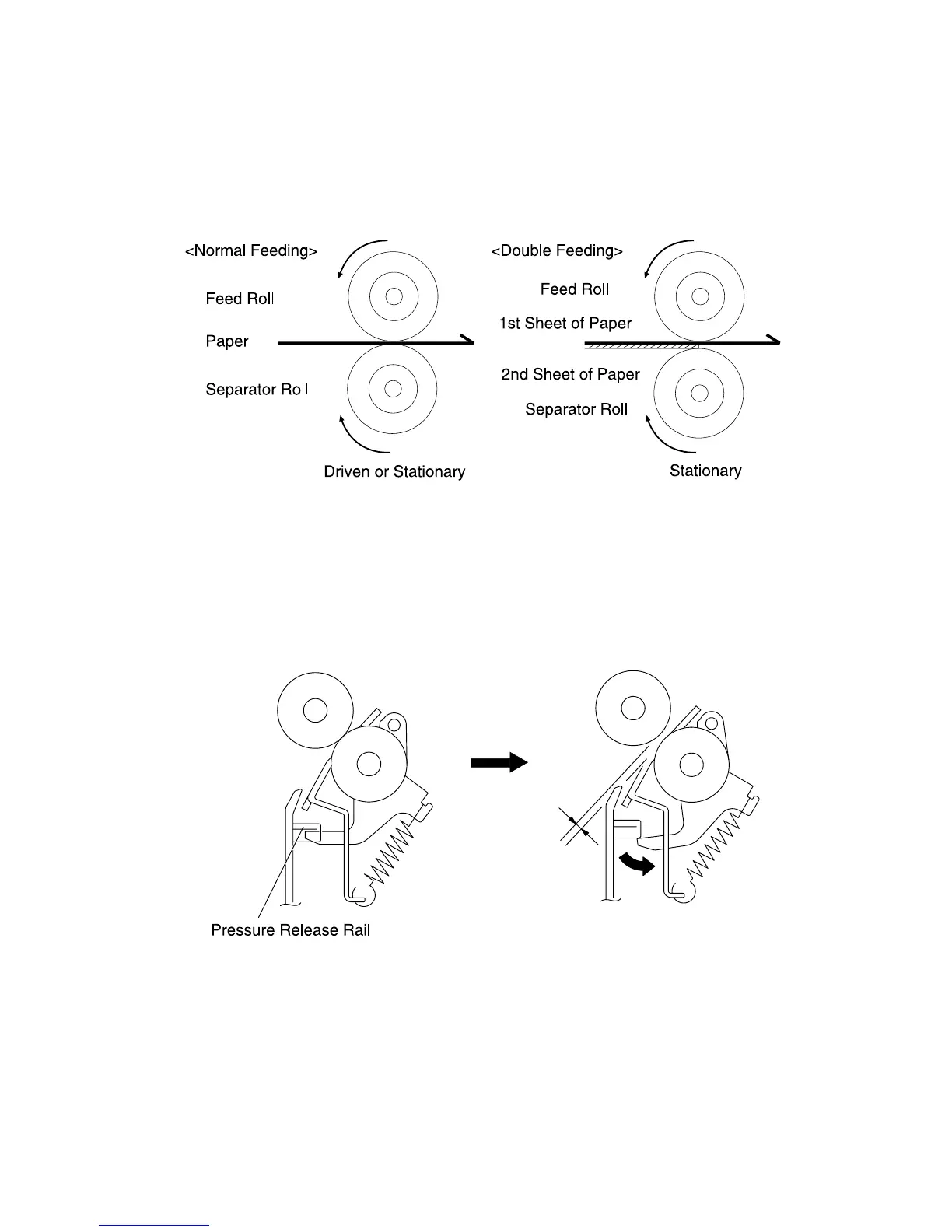

Paper Separating Mechanism
The paper separating mechanism employs a system with a torque
limiter that is fitted to the separator roll shaft. It stops the separator
roll when friction changes between the feed and separator rolls.
Paper Pressure Releasing Mechanism
When LCC is pulled out, the pressure release rail pushes the
separator roll assembly downward, releasing the pressure between
the feed and separator roll. The pressure release rail is located
above the rail on the paper take-up end.
