Image Transfer Section (Release Section)
The transfer roller transfers the toner image on the surface of the PC
Drum onto the paper.
Normally the paper separates from the PC drum without any outside
interference. When the paper fails to separate from the PC drum, the
separating claw releases the paper by force.

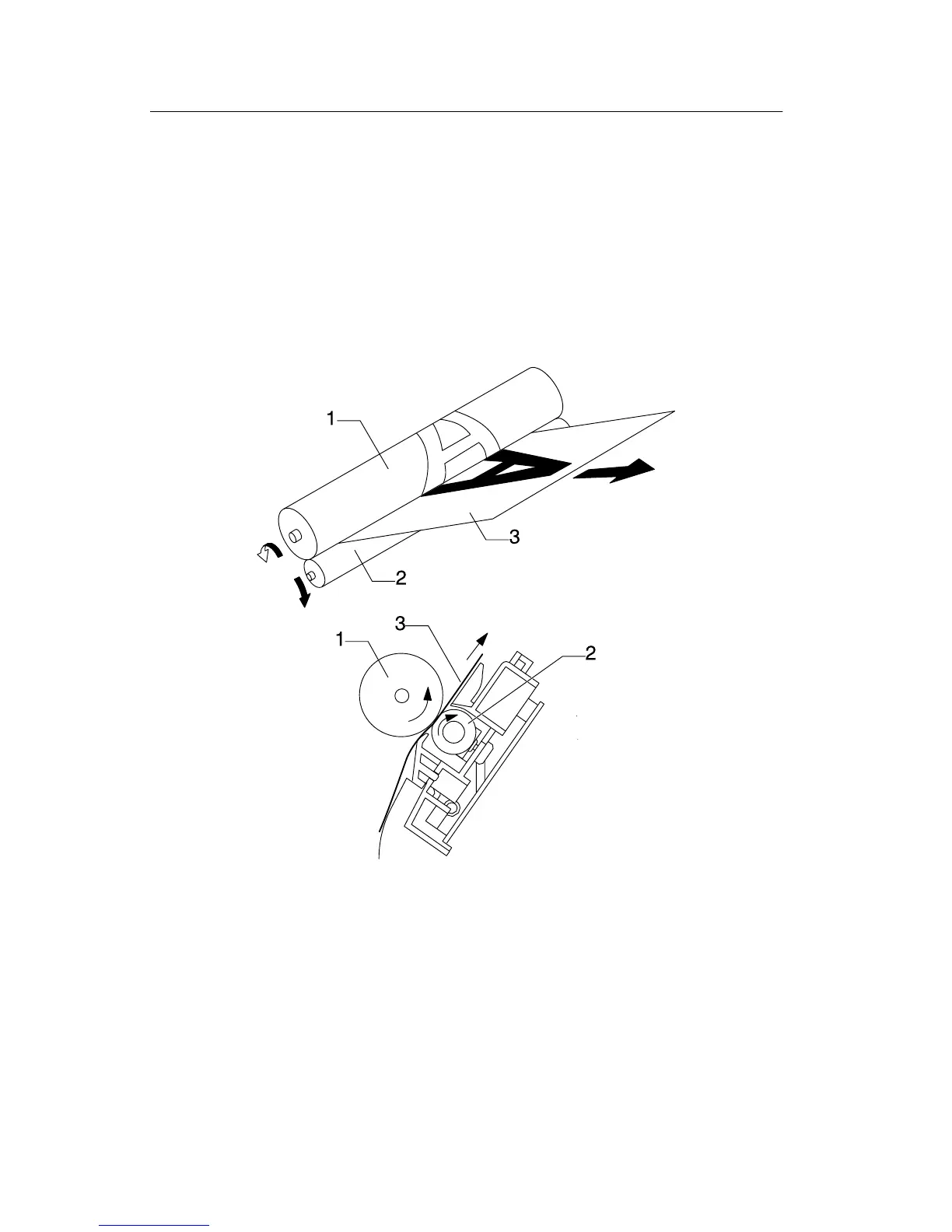

1 PC Drum
2 Image Transfer Roller
3 Paper
