General Information 1-61
4023-001

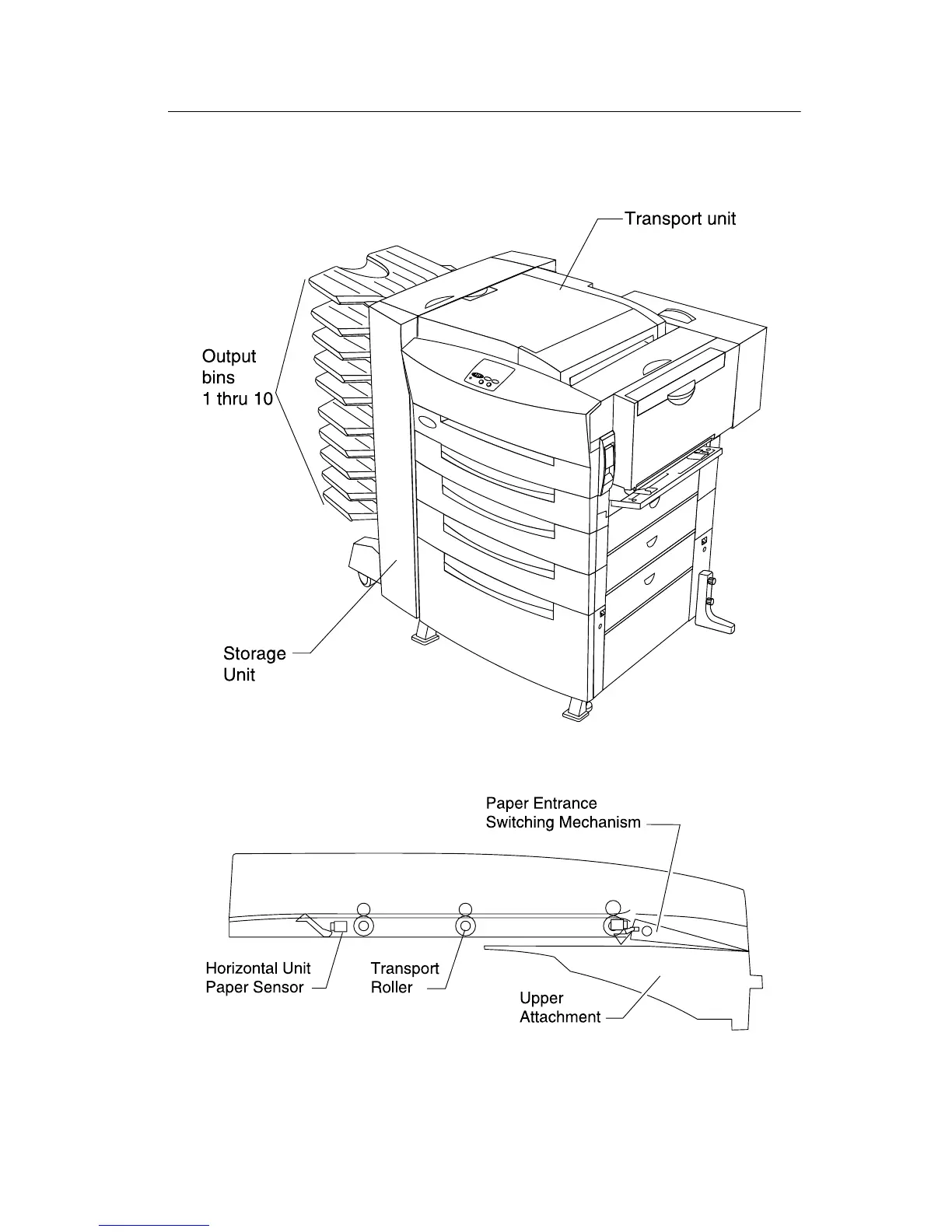

Mailbox/Transport Option
Parts Identification
Horizontal Transport Unit Cross-Sectional View
1 Paper Entrance Switching Mechanism
2 Upper Attachment
3 Transport Roller
4 Horizontal Unit Paper Sensor
