Lexmark Optra W810 - Vertical Transport Roller;Rolls Cleaning; Roll with a Torque Limiter Cleaning

Repair Information 4-81
4023-001

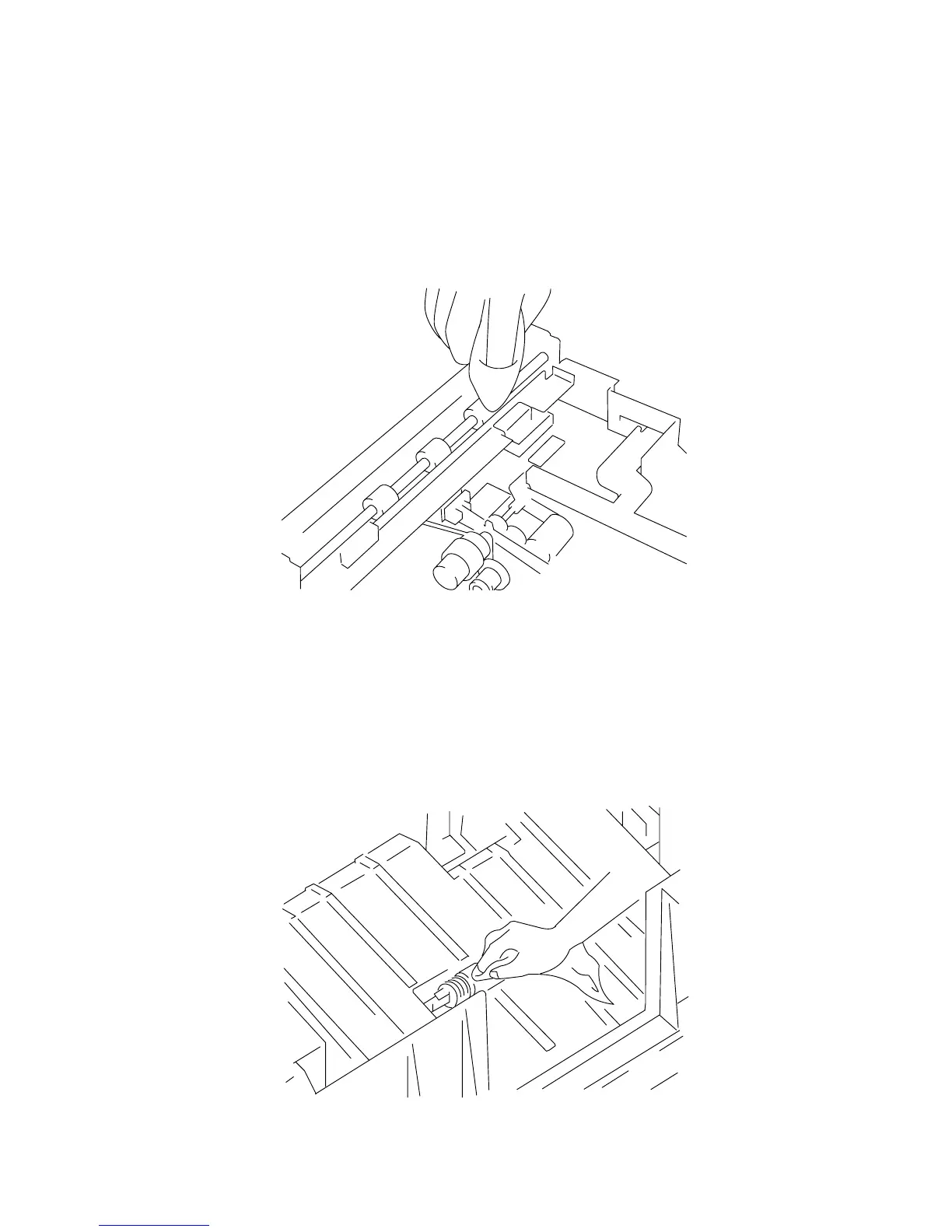

Vertical Transport Roller/Rolls Cleaning
1. Remove the paper take-up unit.
2. Wipe the surface of the vertical transport roller/rolls clean with a
soft cloth dampened with alcohol.
Roll with a Torque Limiter Cleaning
1. Slide out the LCC.
2. Wipe the surface of the roll with a torque limiter clean with a soft
cloth dampened with alcohol.
