Repair Information 4-25
4023-001

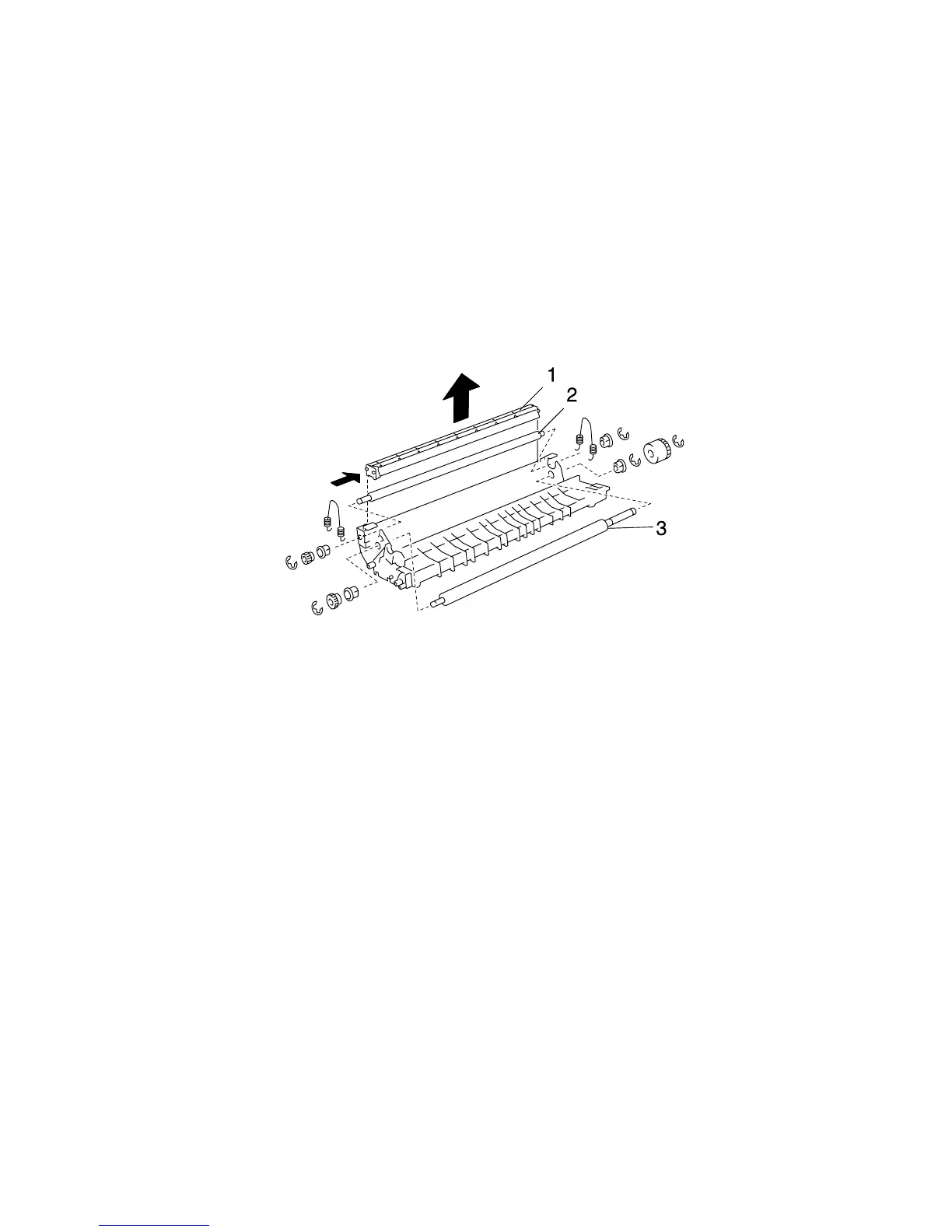

Synchronizing Roller Removal
1. Remove the image transfer unit. (See “Image Transfer Unit
Removal” on page 4-22.)
2. Remove the paper dust remover (1).
3. Remove two E-ring and transport clutch (2).
4. Remove the synchronizing roller (3). (3 E-rings, 2 springs, 4
bushings, 2 gears)
