1-40 Service Manual
4023-001
Right Door Interlock Switch (S2)
The right door is normally closed. It is open when the imaging
cartridge is replaced or jammed paper is removed.
With the door closed, the projection of the right door presses the
spring attached to the switch lever, turning the switch ON. When it is
opened, the lever of the switch is released, turning the switch OFF.

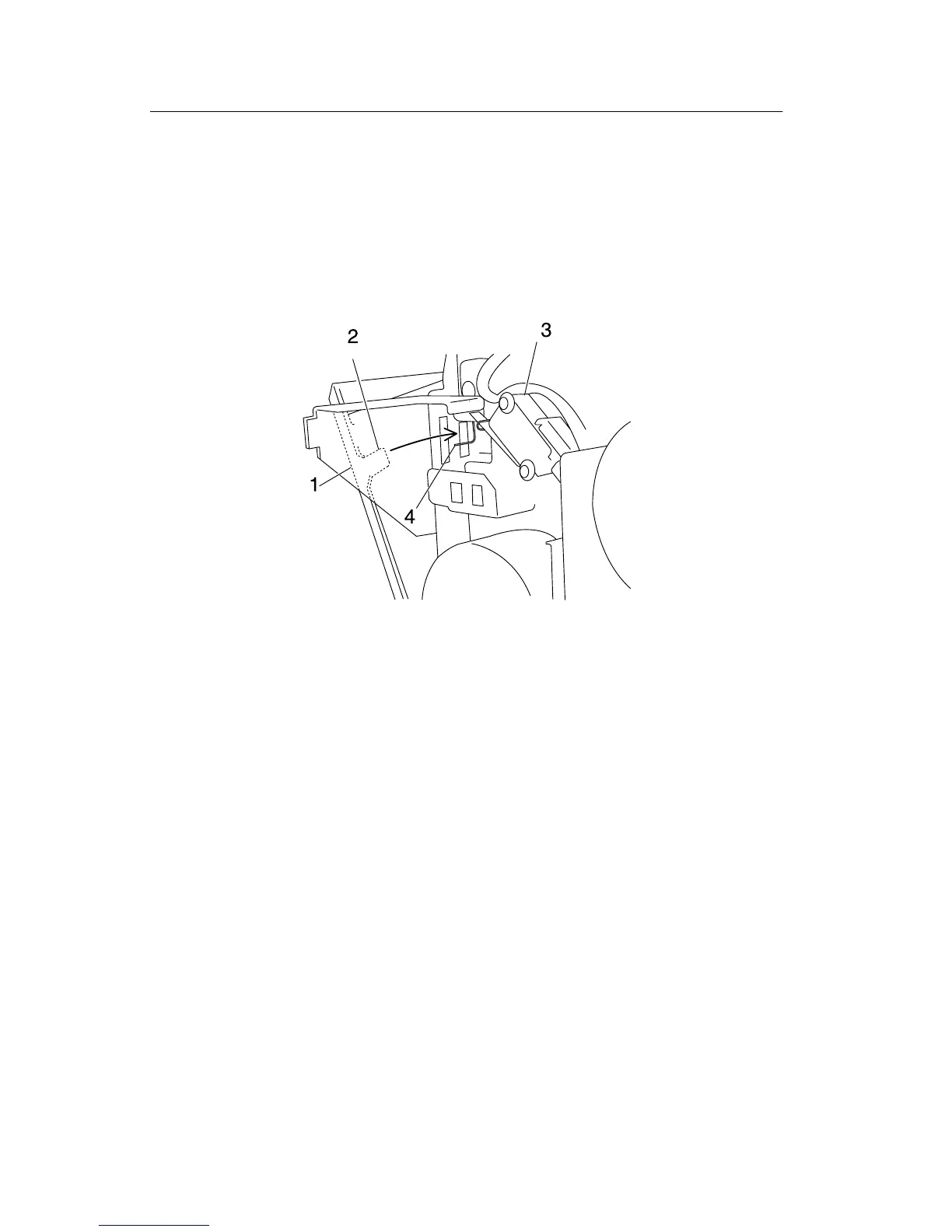

1 Right Door 3 Right Door Interlocks
2 Projection 4 Spring
