Paper Transport Mechanism
Entrance Path Switching Mechanism
Non-Sort mode:

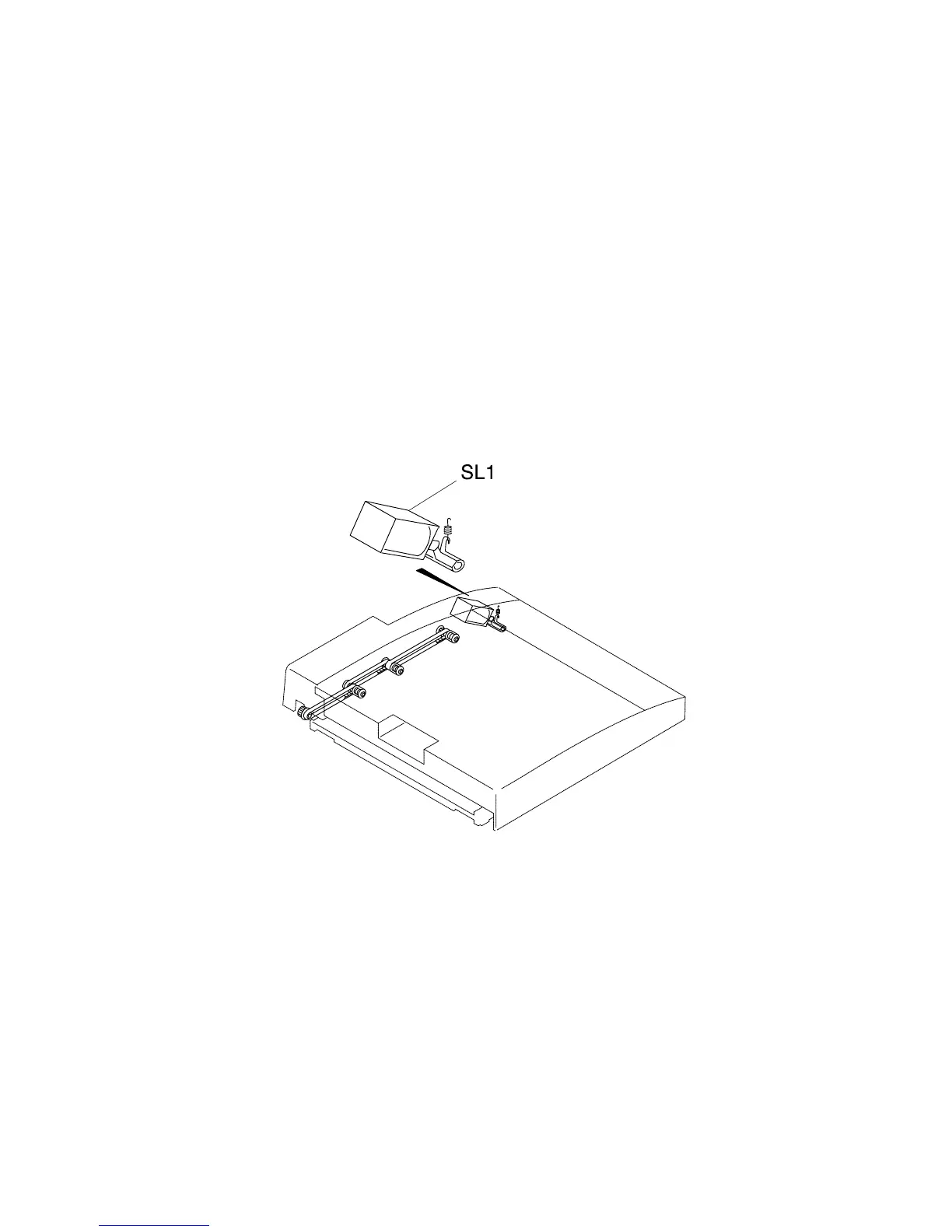

Paper entrance switching solenoid (SL1) energizes to swing the
path switching guide upward and stop it when non-sort tray transport
position detecting sensor is blocked.
Mode other than Non-Sort:
Paper entrance switching solenoid (SL1) energizes to swing the
path switching guide upward and stop it when finisher transport
position detecting sensor is blocked.
