Repair Information 4-33
4023-001
Erase Lamp (LA1) Removal
1. Remove the eraser duct assembly. (See “Eraser Duct
Assembly Removal” on page 4-32.)

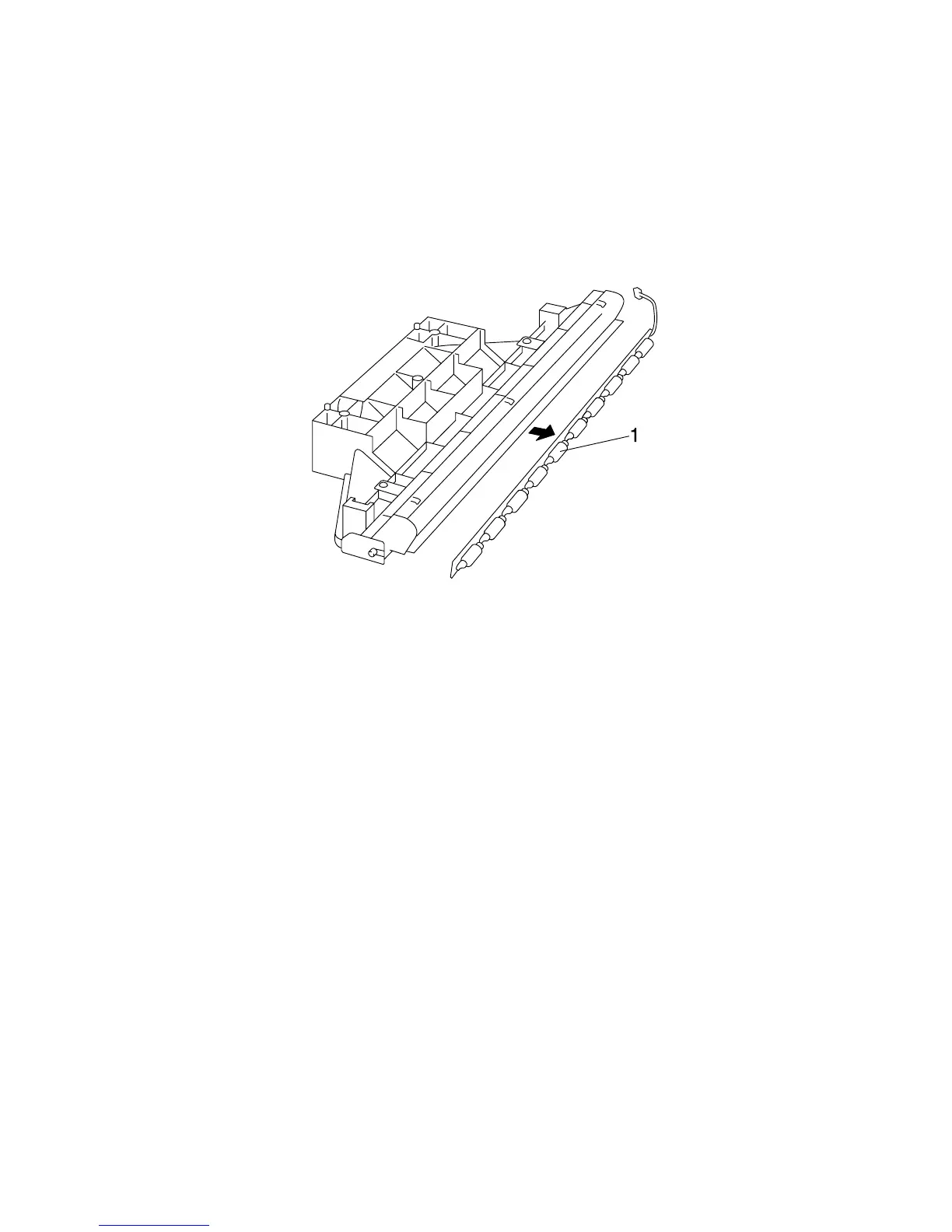

2. Release three projections and remove the erase lamp LA1 (1).
