Repair Information 4-65
4023-001
500-Sheet Cassette (Tray 2 and 3) Paper Near Empty
Sensor (PC25) Removal
1. Remove the 2nd cassette unit. (See “Double Feed Detection
Sensor Board (PWB-H) Removal” on page 4-60.)
2. Release 3 projections and remove the harness cover. (See
“500-Sheet Cassette (Tray 2 and 3) Paper Empty Sensor
(PC22) Removal” on page 4-64 for illustration.)

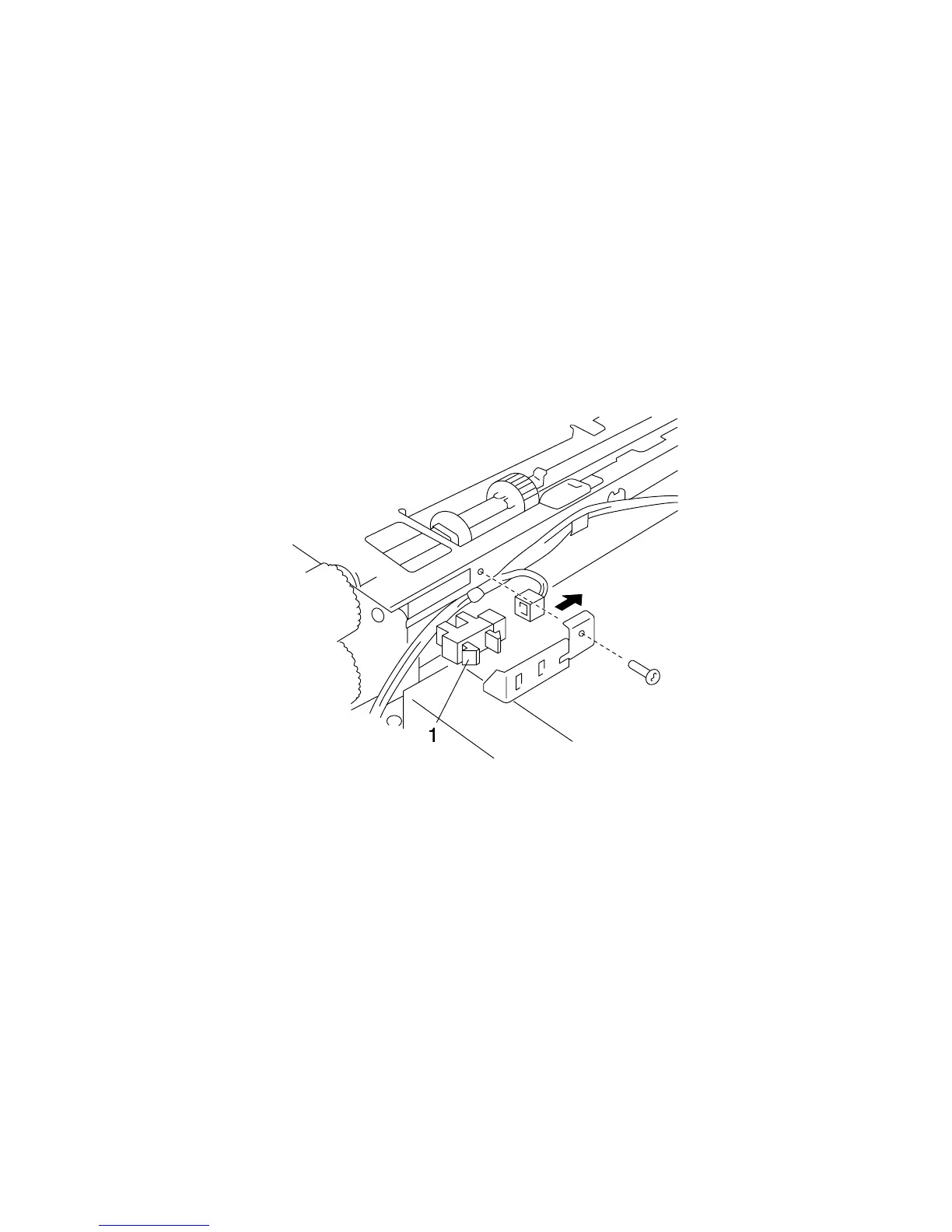

3. Remove the 2nd cassette paper near empty sensor PC25 (1).
(1 screw, 1 connector)
