1-72 Service Manual
4023-001
Finisher Tray

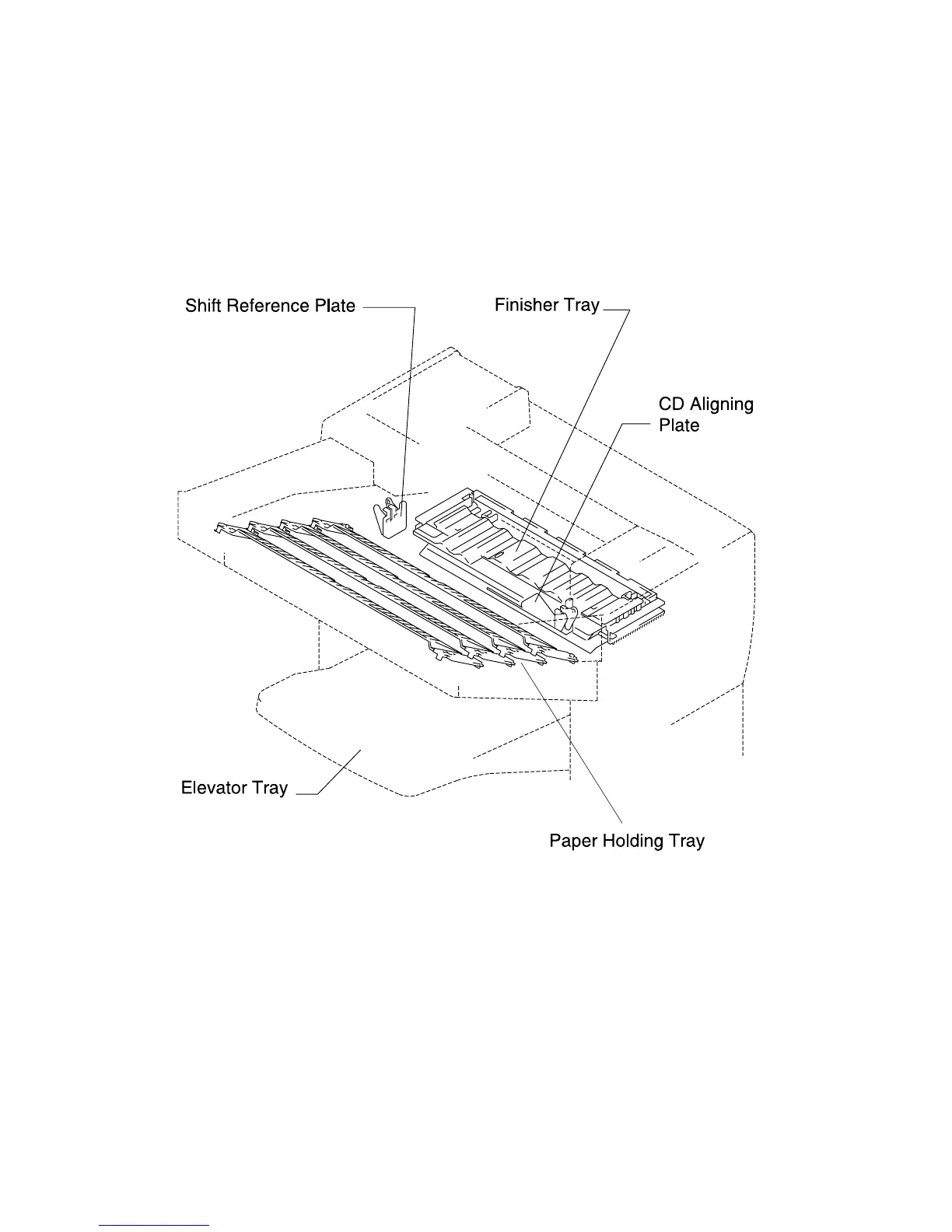

The finisher tray is used when aligning, shifting, and stapling a print
set/stack in the shift or staple mode. The finisher tray and paper
holding tray retract to let the processed print set/stack drop onto the
elevator tray.
CD Aligning Mechanism
The CD aligning plate moves and the paddle rotates to press each
print against the shift reference plate.
CD Aligning Plate
The CD aligning motor rotates in the forward or backward direction,
turning the spiral shaft to move the CD aligning plate.
