Repair Information 4-71
4023-001
Paper Take-Up Unit Removal

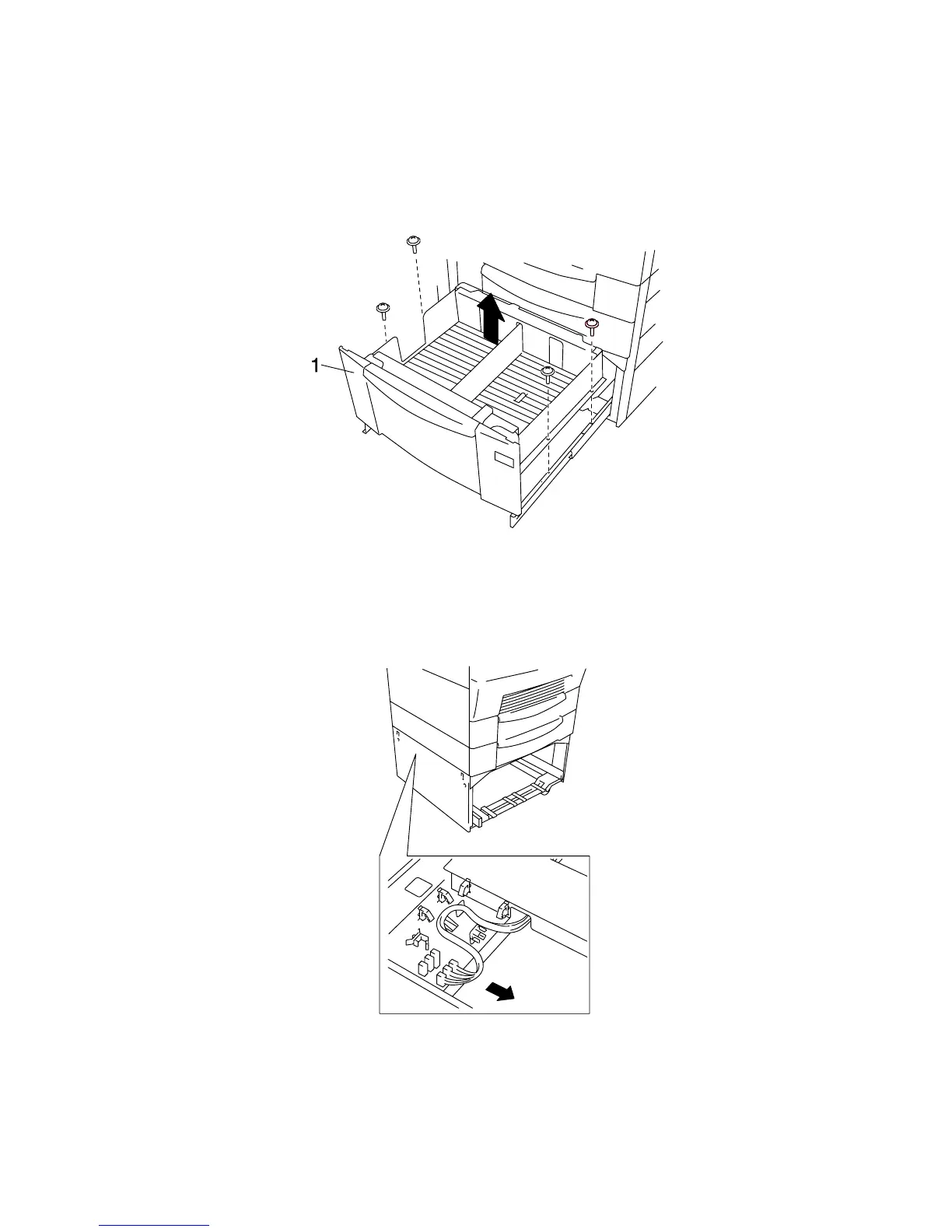

1. Remove the LCC (1). (4 screws)
2. Unplug 3 connectors and remove the harness from 5 cord
clamps.
