Repair Information 4-5
4023-001
Right Cover Safety Switch Adjustment
With power switch (S1) ON and the right cover closed, check and
adjust the position of the right cover safety switch (S2).
1. Remove the outer cover, and the cartridge hopper assembly.
2. After loosening the right cover interlock switch (S2) screw, close
the right cover carefully.
3. Move the right cover interlock switch (S2) up and down and
tighten the screw at the position where the switch turns on.
Finisher

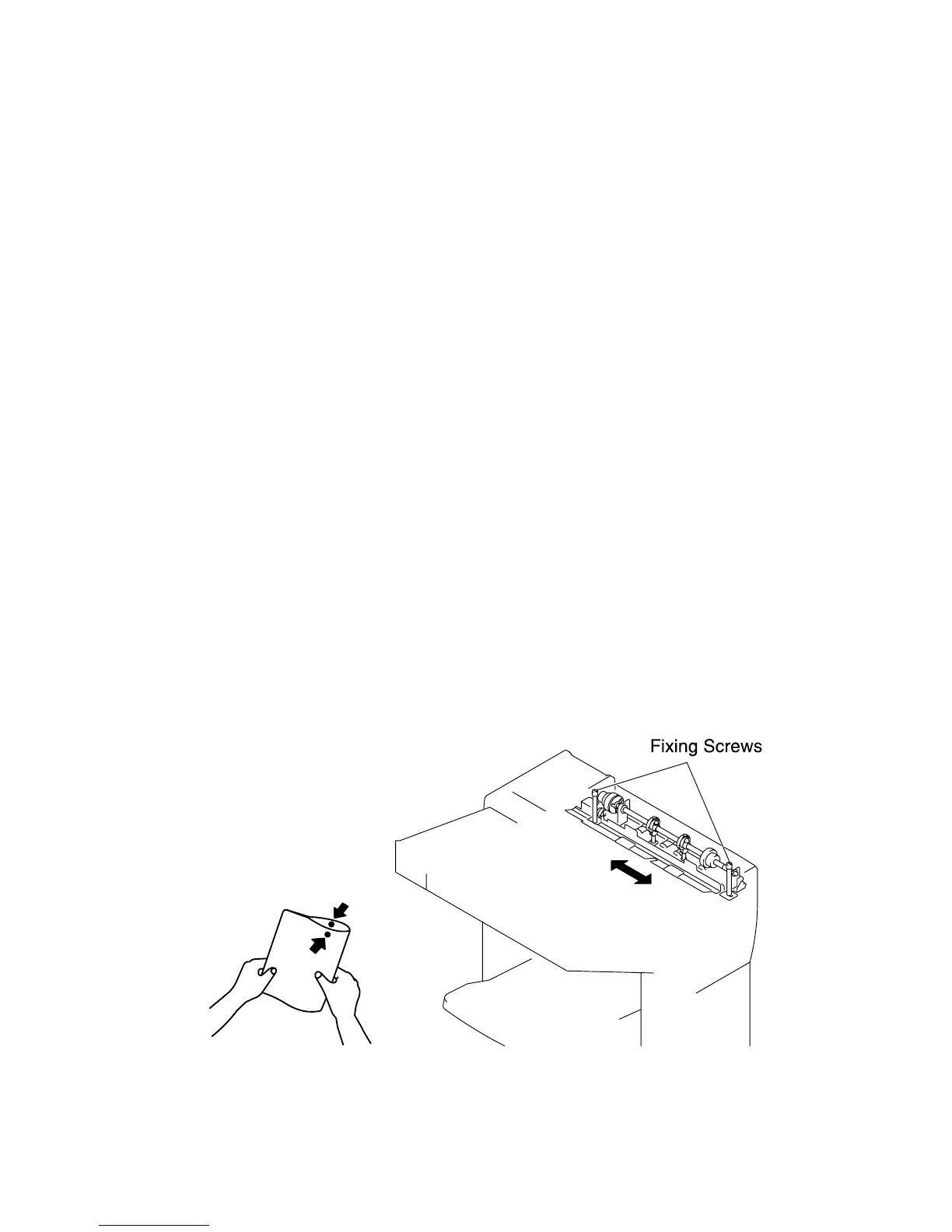

Punch Hole Position Check/Adjustment
1. Set the printer into the hole punch mode and make a print in the
1→1 setting.
2. Fold the print in half and check to see if the punch holes are
aligned (deviation should be within 2 mm).
3. If the holes are misaligned, loosen the two screws that secure
the punch unit and slide the punch unit left or right as
necessary. (Use the scale on the cover as a reference.)
4. Reprint and check for the correct punching position.
