Lexmark Optra W810 - Paper Take-Up Roll Cleaning; Feed Roll and Separator Roll Cleaning

4-80 Service Manual
4023-001

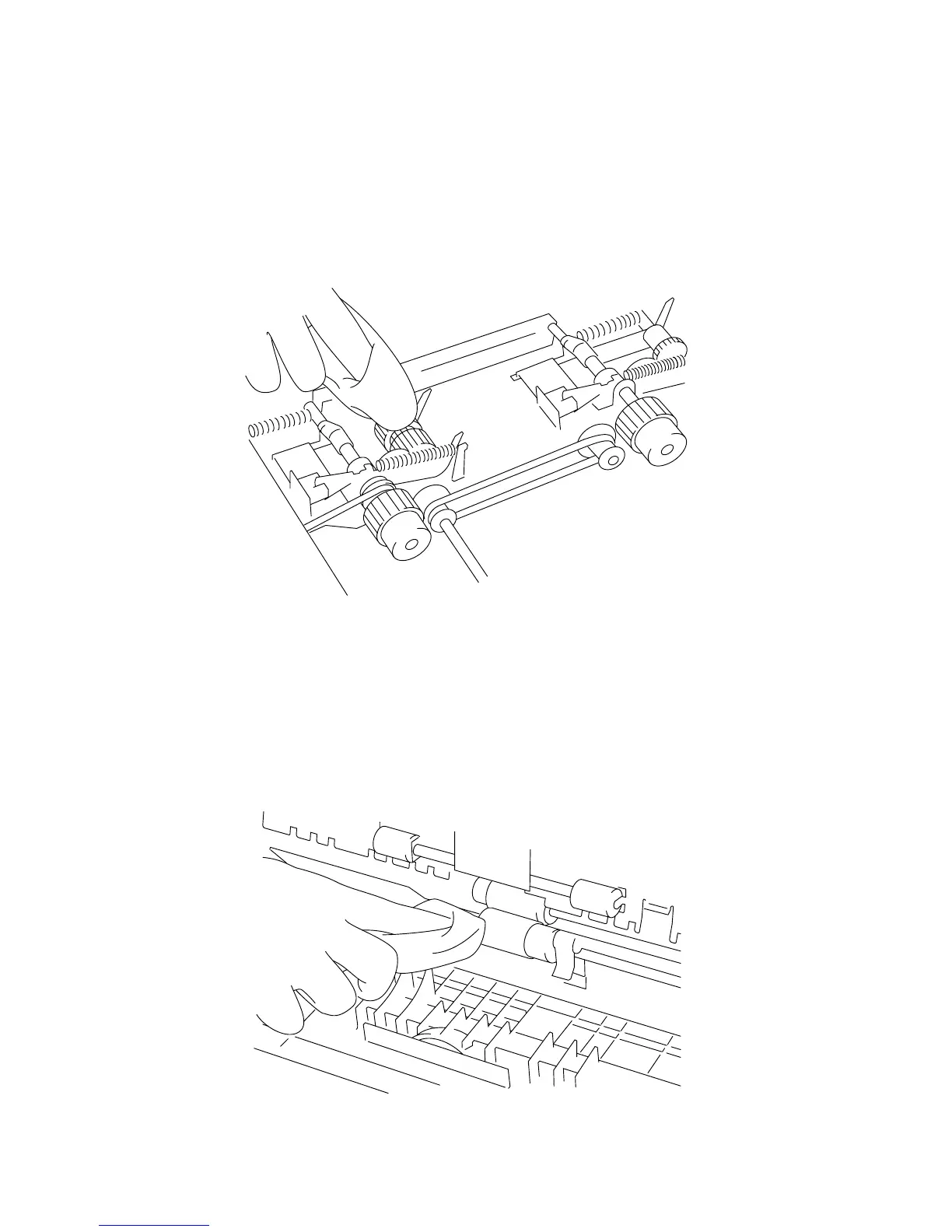

Paper Take-Up Roll Cleaning
1. Remove the paper take-up unit.
2. Wipe the surface of paper take-up roll 1 & 2 clean with a soft
cloth dampened with alcohol.
Feed Roll and Separator Roll Cleaning
1. Open the side panel.
2. Wipe the surface of the feed/separator roll clean with a soft
cloth dampened with alcohol.
