General Information 1-11
4023-001
Paper Feed Section
Taking Up Paper–Tray 1 (1st Paper Cassette)
Power is transmitted from the transport motor (M2) as follows to take
up paper from the 1st paper cassette:
1. The transport motor (M2) turns counterclockwise.
2. The idle gear turns clockwise and the 1st cassette paper take-
up solenoid (SL1) turns ON.
3. The paper take-up roller turns counterclockwise and paper is
taken up.

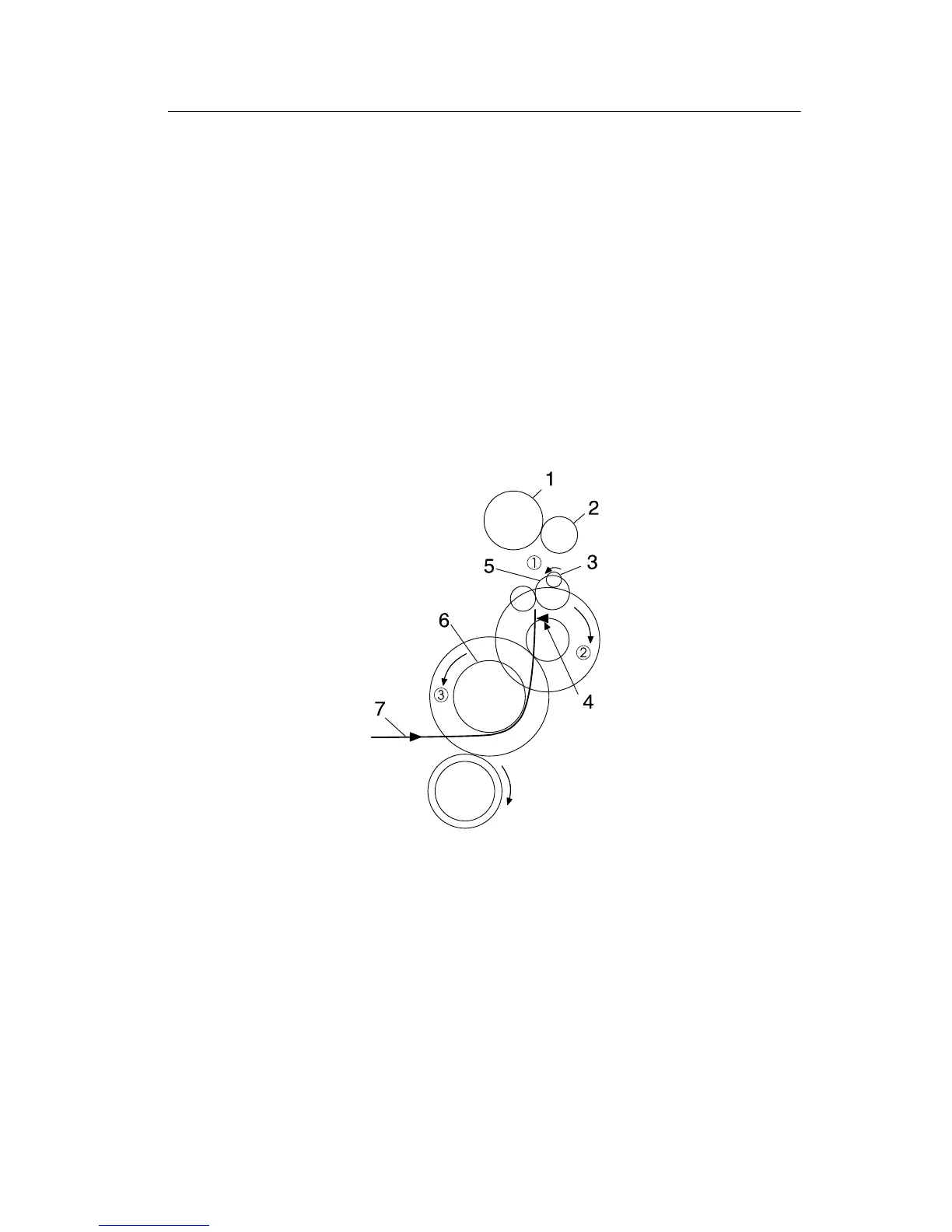

1 PC Drum 5 Synchronizing Roller
2 Image Transfer Roller 6 Paper Take-Up Roller
3 Transport Motor (M2) 7 Paper
4 Synchronizing Roller
Sensor (PC2)
To Next Page
