Lexmark Optra W810 - 500-Sheet Cassette (Tray 2 and 3) Paper Size Detecting Board (PWB-S2) Removal

4-20 Service Manual
4023-001
500-Sheet Cassette (Tray 2 and 3) Paper Size Detecting
Board (PWB-S2) Removal
Note: This procedure covers the 2nd, 3rd and optional tray.
1. Remove the 2nd cassette.

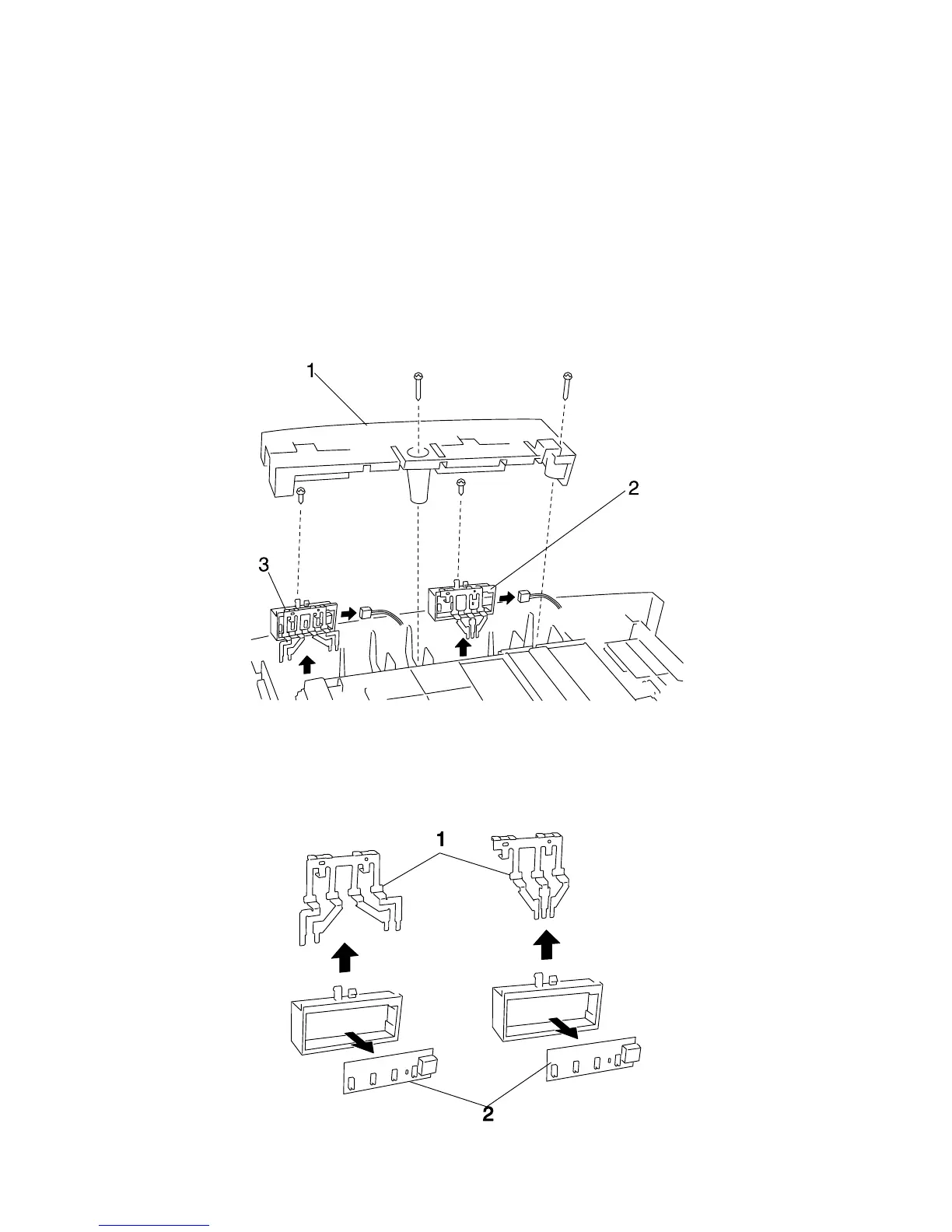

2. Turn the 2nd cassette over and remove the cover (1). (2
screws)
3. Remove the right PWB-I assembly (2). (1 screw, 1 connector)
4. Remove the left PWB-I assembly (3). (1 screw, 1 connector)
5. Remove the paper size detecting lever (1) and the left
PWB-S2 (2).
6. Remove the paper size detecting lever (1) and the right PWB-
S2 (2).
