Lexmark Optra W810 - Synchronizing Roller Sensor (PC2) Removal

Repair Information 4-23
4023-001
Synchronizing Roller Sensor (PC2) Removal

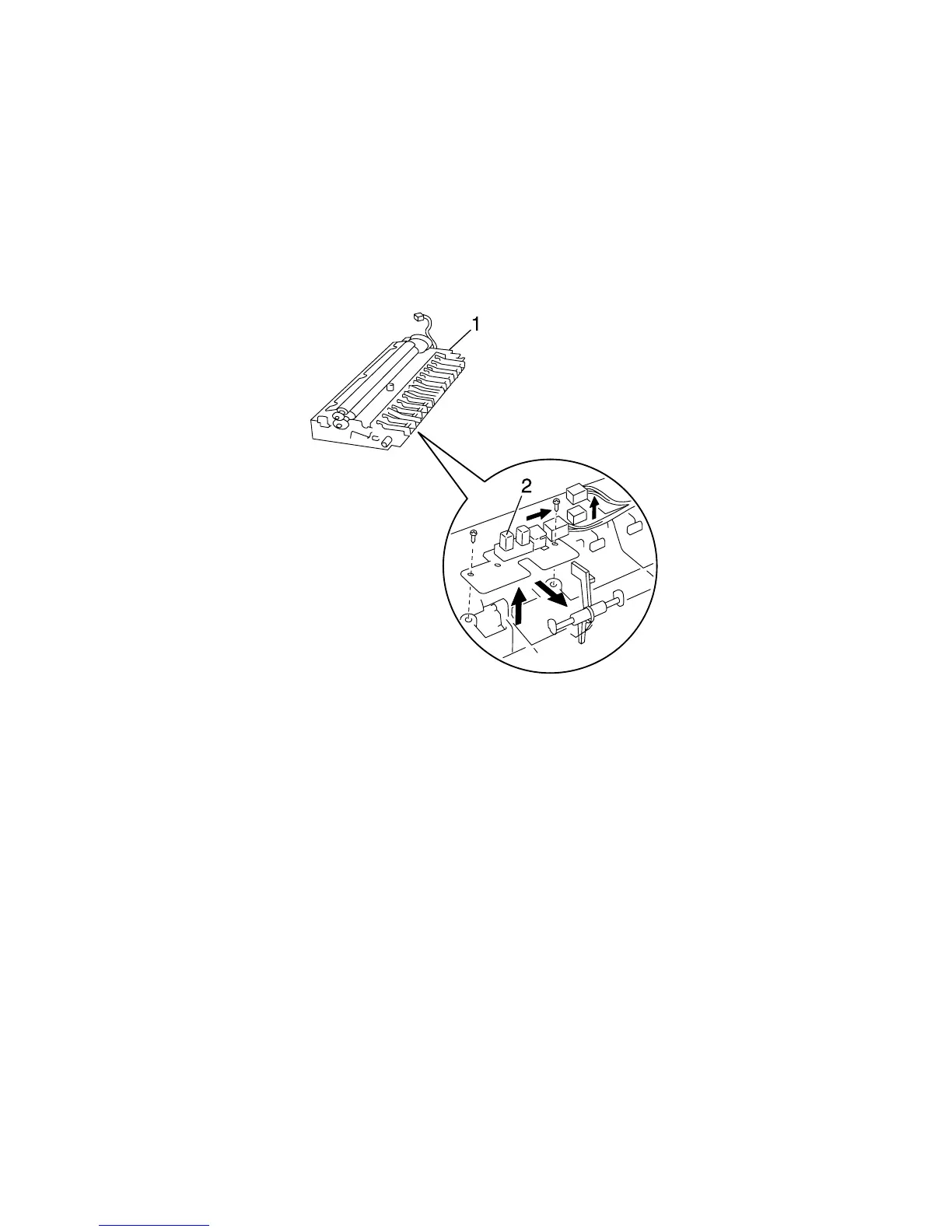

1. Remove the image transfer unit (1). (See “Image Transfer Unit
Removal” on page 4-22.)
2. From the back side of the image transfer unit (1), remove the
synchronizing roller sensor (PC2) (2). (2 screws)
