Lexmark Optra W810 - CPM (Power Supply Safety) Switch and PWB-L Removal

Repair Information 4-45
4023-001

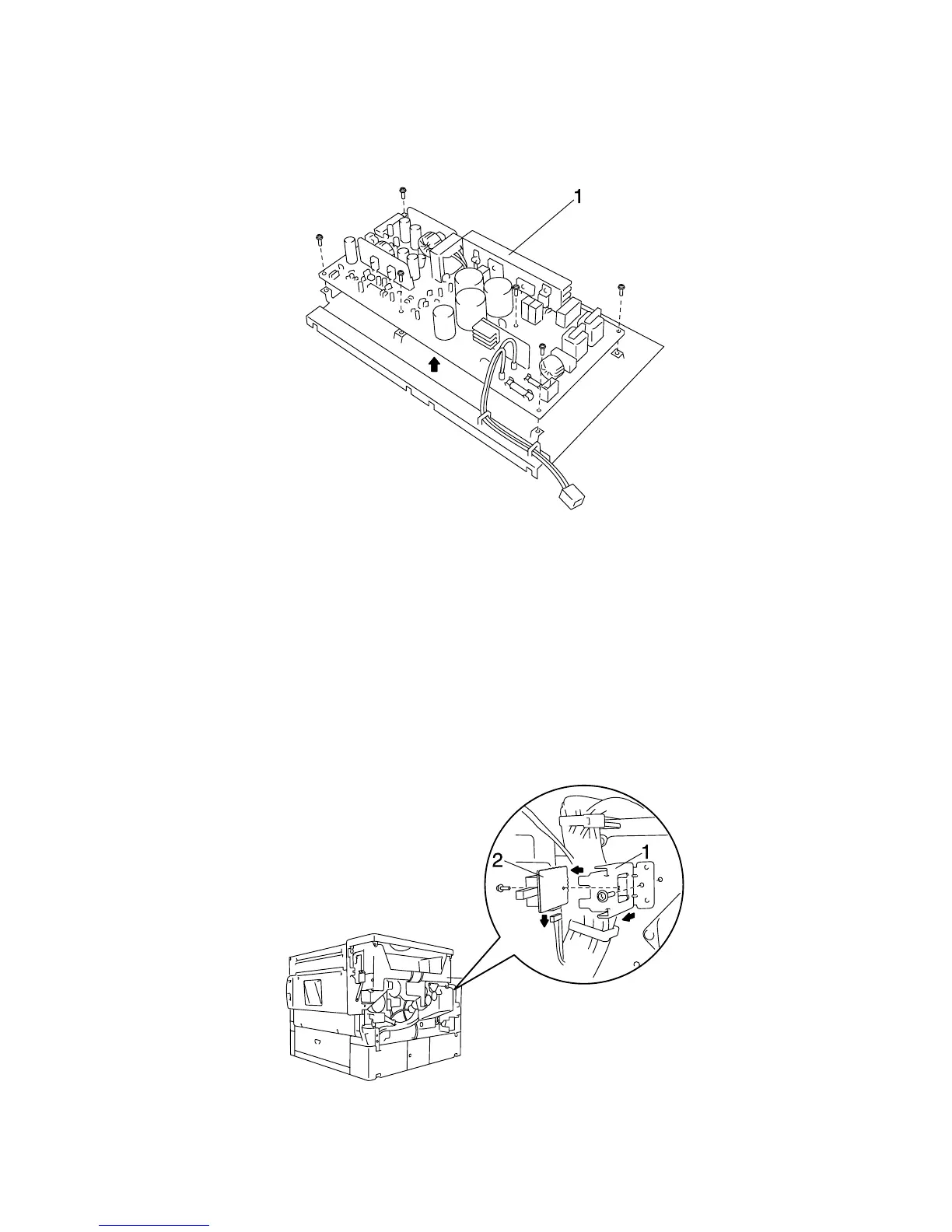

6. Remove PU1 (1). (6 screws)
CPM (Power Supply Safety) Switch and PWB-L
Removal
1. Remove the toner cartridge.
2. Remove the rear cover. (6 screws)
3. Remove PWB-L assembly (1). (1 screw)
4. Remove PWB-L (2). (1 screw, 1 connector)
