Lexmark Optra W810 - 1 St Cassette;250-Sheet (Tray1) Paper Take-Up Roller Removal; Rolls Removal

4-16 Service Manual
4023-001
1st Cassette/250-Sheet (Tray1) Paper Take-Up Roller
Removal

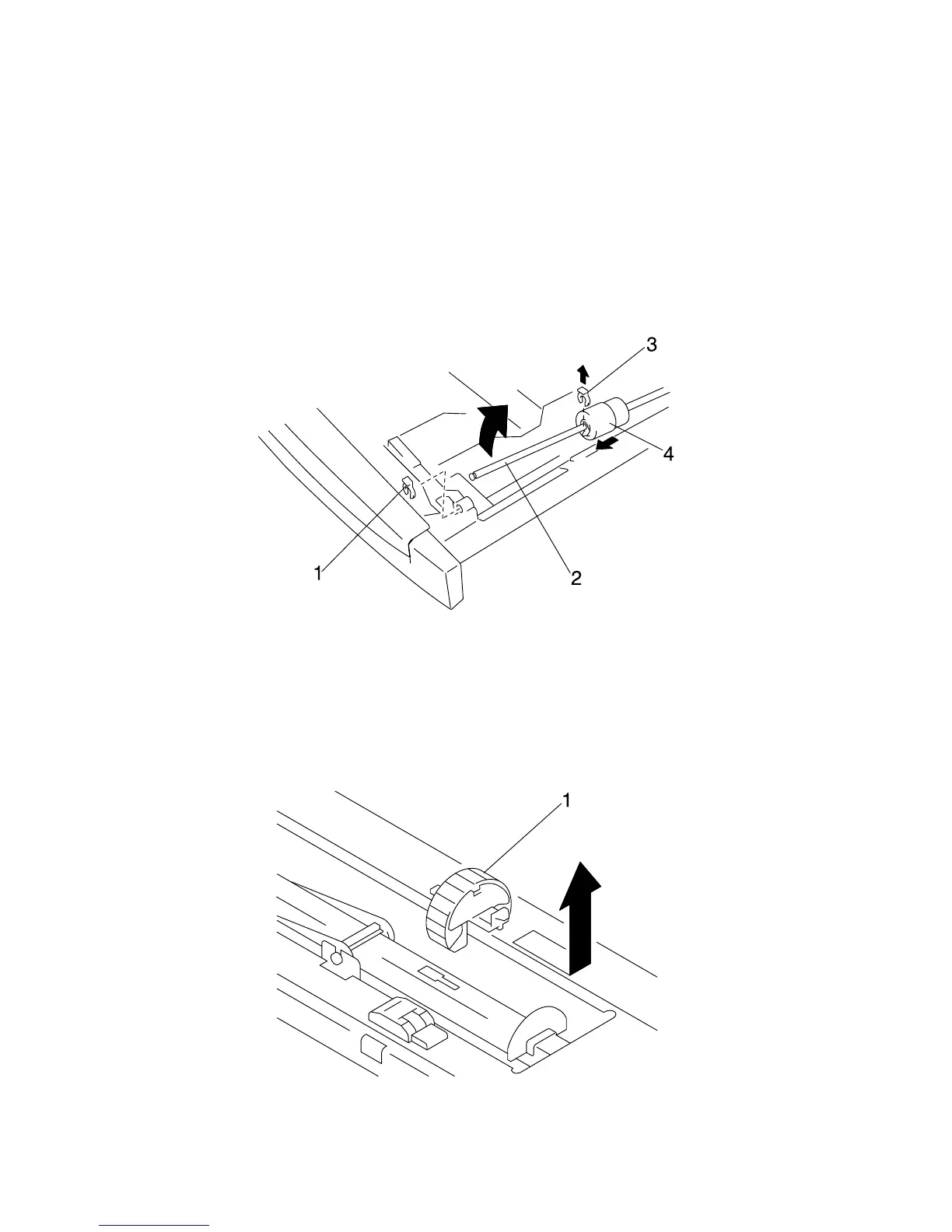

1. Remove the 1st cassette.
2. Remove C-clip (1) from end of rod (2).
3. Remove C-clip (3).
4. Slide paper take-up roller (4) to end of rod (2).
5. Lift rod (2) and remove paper take-up roller (4).
250-Sheet Cassette (Tray 1) Paper Take-Up Rolls
Removal
1. Remove the cassette from the upper drawer.
2. Unlock the paper take-up roll (1) and slide it off its shaft.
