Lexmark Optra W810 - Rear Cable Removal

4-86 Service Manual
4023-001
Rear Cable Removal

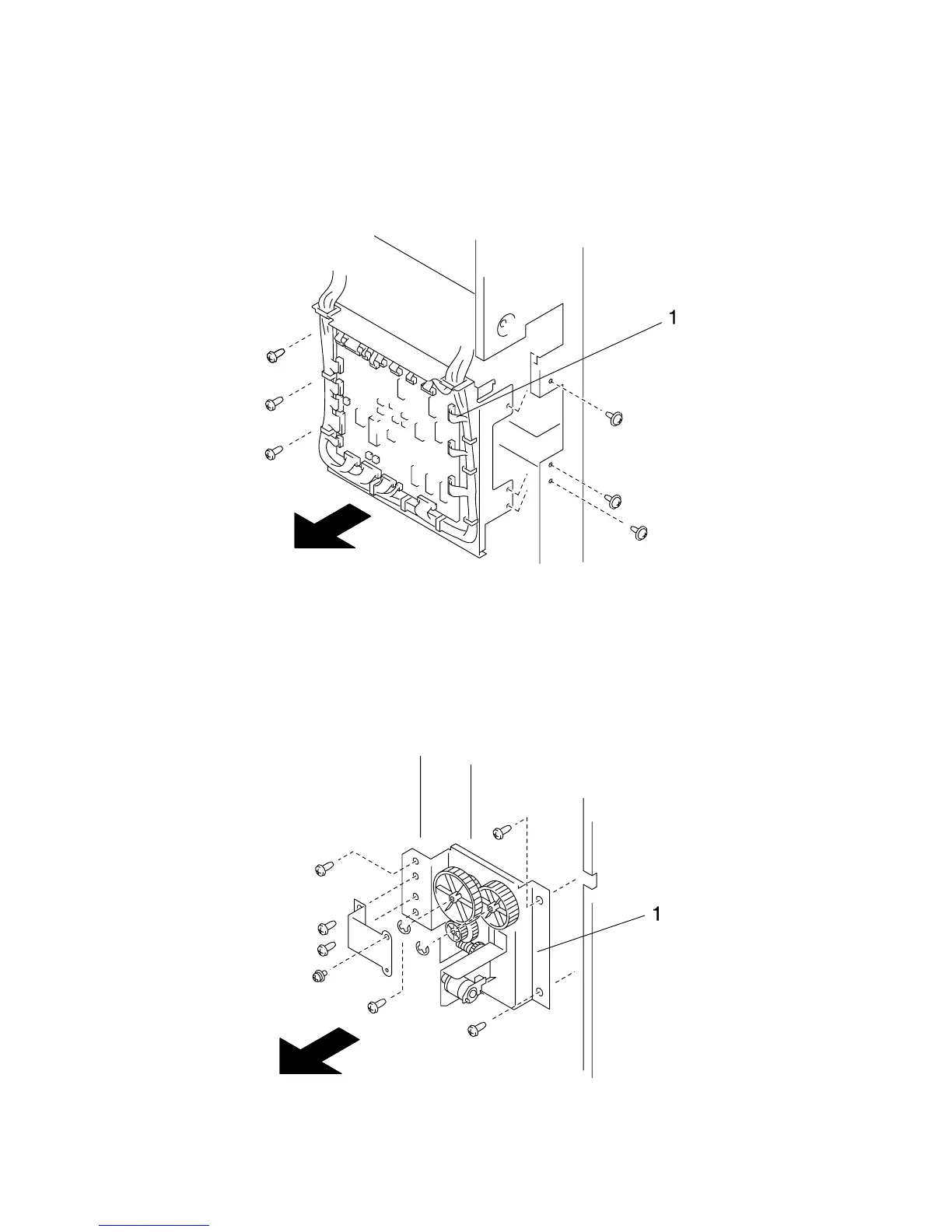

1. Remove PWB-A (1). (6 screws)
2. Remove the elevator motor (M9) assembly (1). (6 screws, 2 C-
clips)
Note: During the removal procedure, support the elevator tray to
prevent it from falling.
