1-70 Service Manual
4023-001
Paper Transport Mechanism

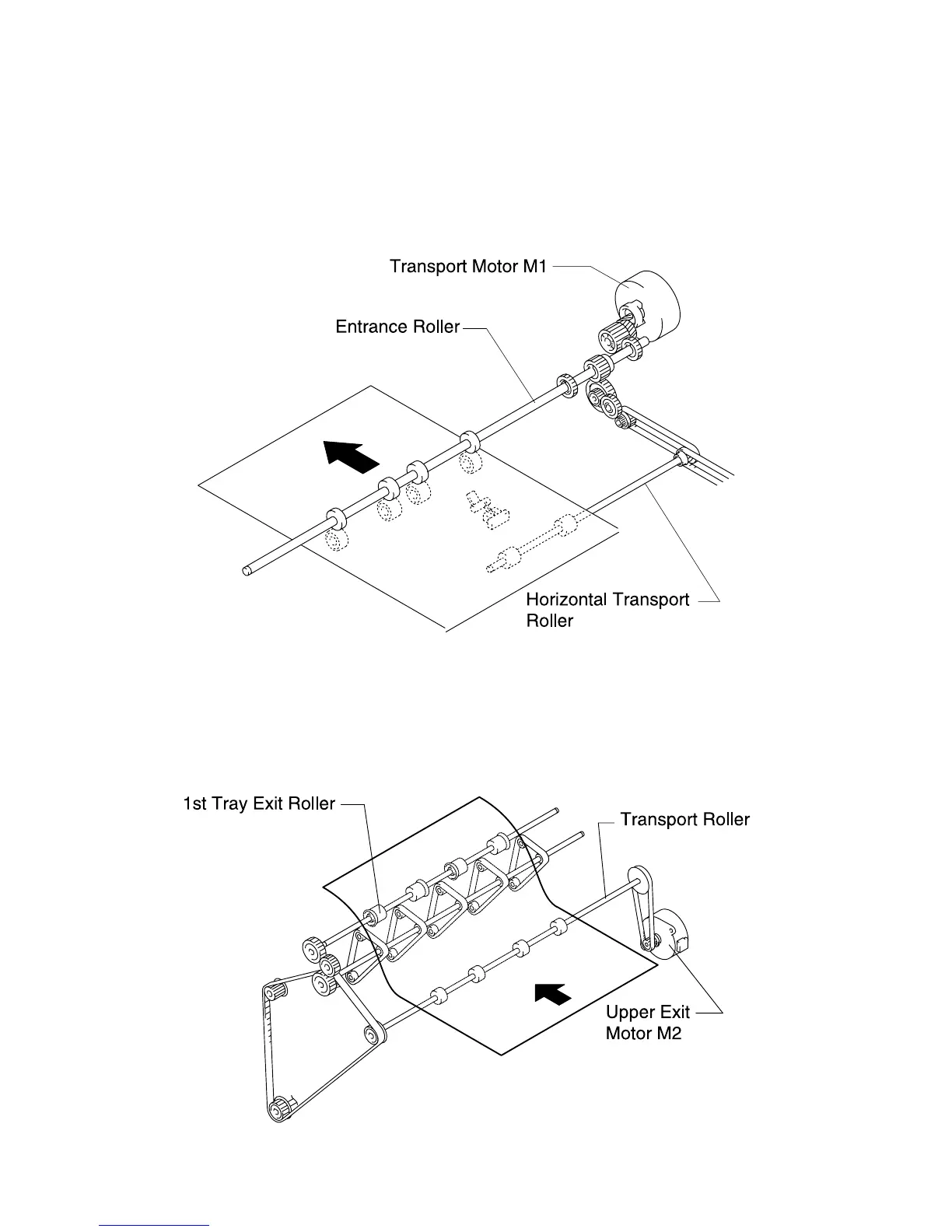

Paper Entrance Transport Mechanism
The transport motor (M1) drives the horizontal transport rollers and
entrance roller which transports the print into the finisher.
1st Tray Transport Mechanism
Upper exit motor drives the 1st tray exit roller and transport roller to
feed the print into the 1st tray. The speed at which the print
transports decelerates as it feeds into the 1st tray.
