Lexmark Optra W810 - Ozone Fan Motor (M8) and Ozone Filter Removal

Repair Information 4-47
4023-001
Ozone Fan Motor (M8) and Ozone Filter Removal
1. Remove the toner cartridge.
2. Remove the rear cover. (6 screws)

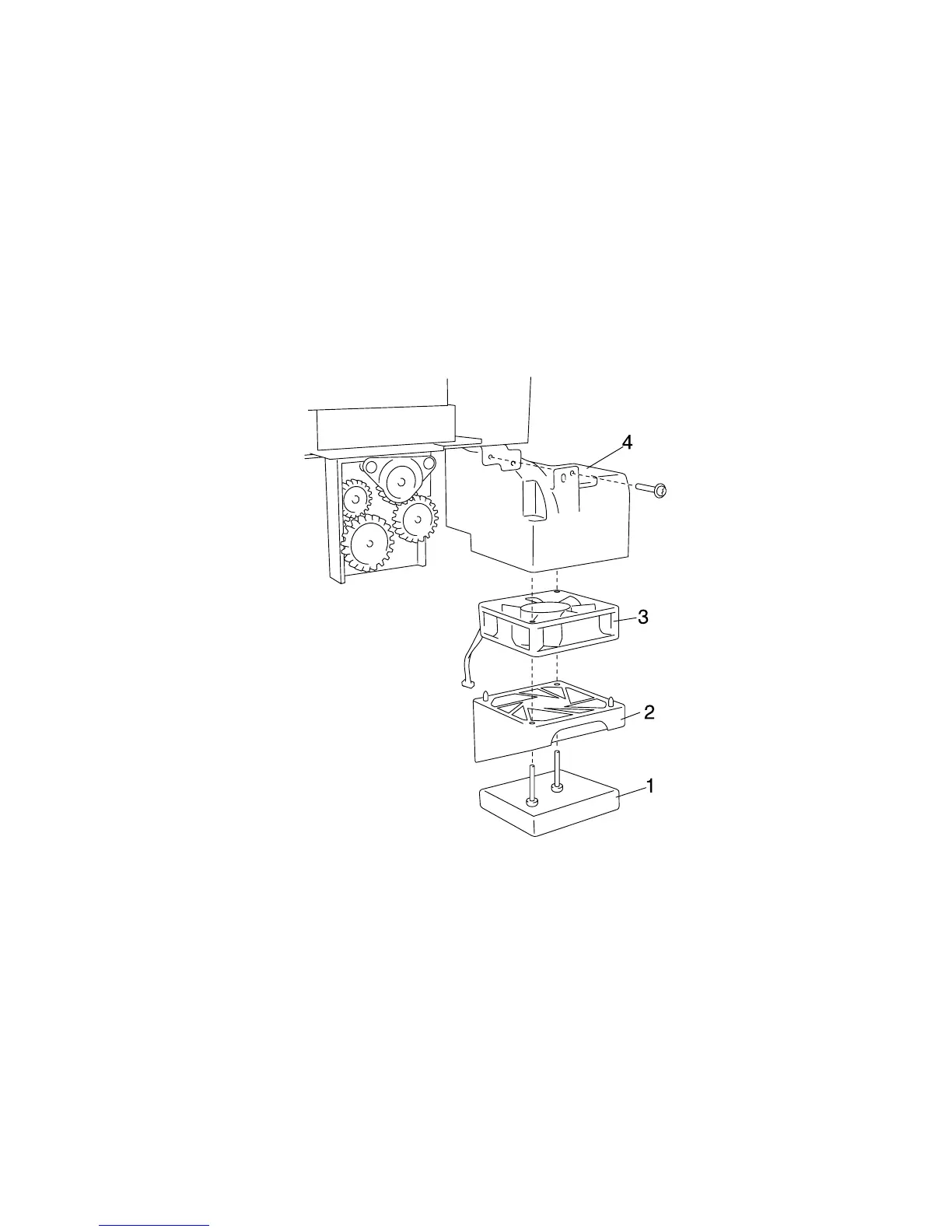

3. Remove the ozone filter assembly (4). (1 screw, 1 connector)
4. Remove the ozone filter (1).
5. Remove the ozone fan motor cover (2). (2 screws)
6. Remove the ozone fan motor M8 (3).
