Repair Information 4-55
4023-001
Toner Detecting Read Switch (S4) Removal
1. Remove the toner cartridge.
2. Remove the rear cover. (6 screws)
3. Remove the right cartridge hopper cover. (1 screw)
4. Remove the cartridge hopper assembly. (4 screws, 2
connectors)
5. Remove the cartridge hopper housing assembly. (4 screws)

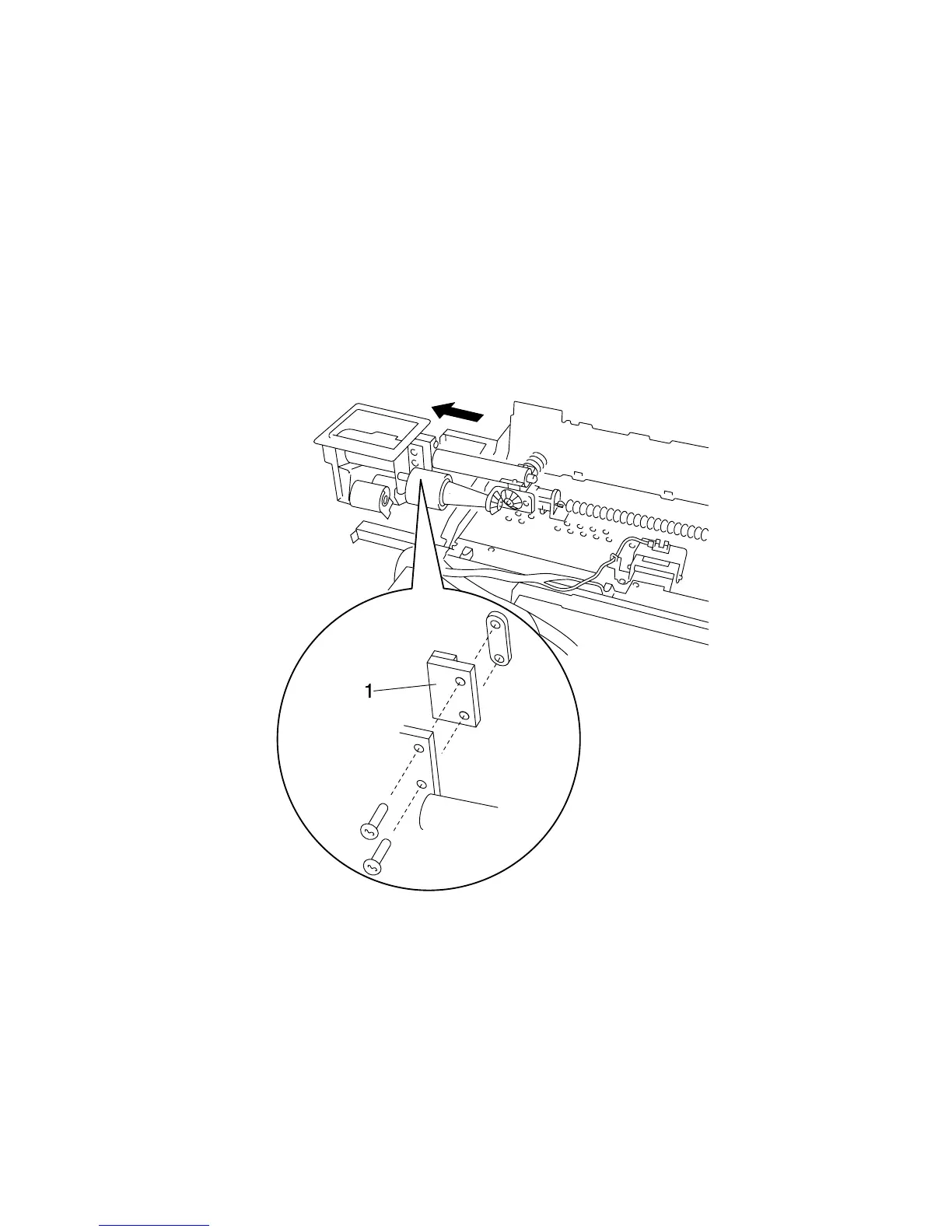

6. Remove the toner detecting read switch S4 (1). (2 screws)
