Lexmark Optra W810 - 1 St Cassette Paper Empty Sensor (PC4) Removal

Repair Information 4-35
4023-001
1st Cassette Paper Empty Sensor (PC4) Removal
1. Remove the eraser duct assembly. (See “Eraser Duct
Assembly Removal” on page 4-32.)

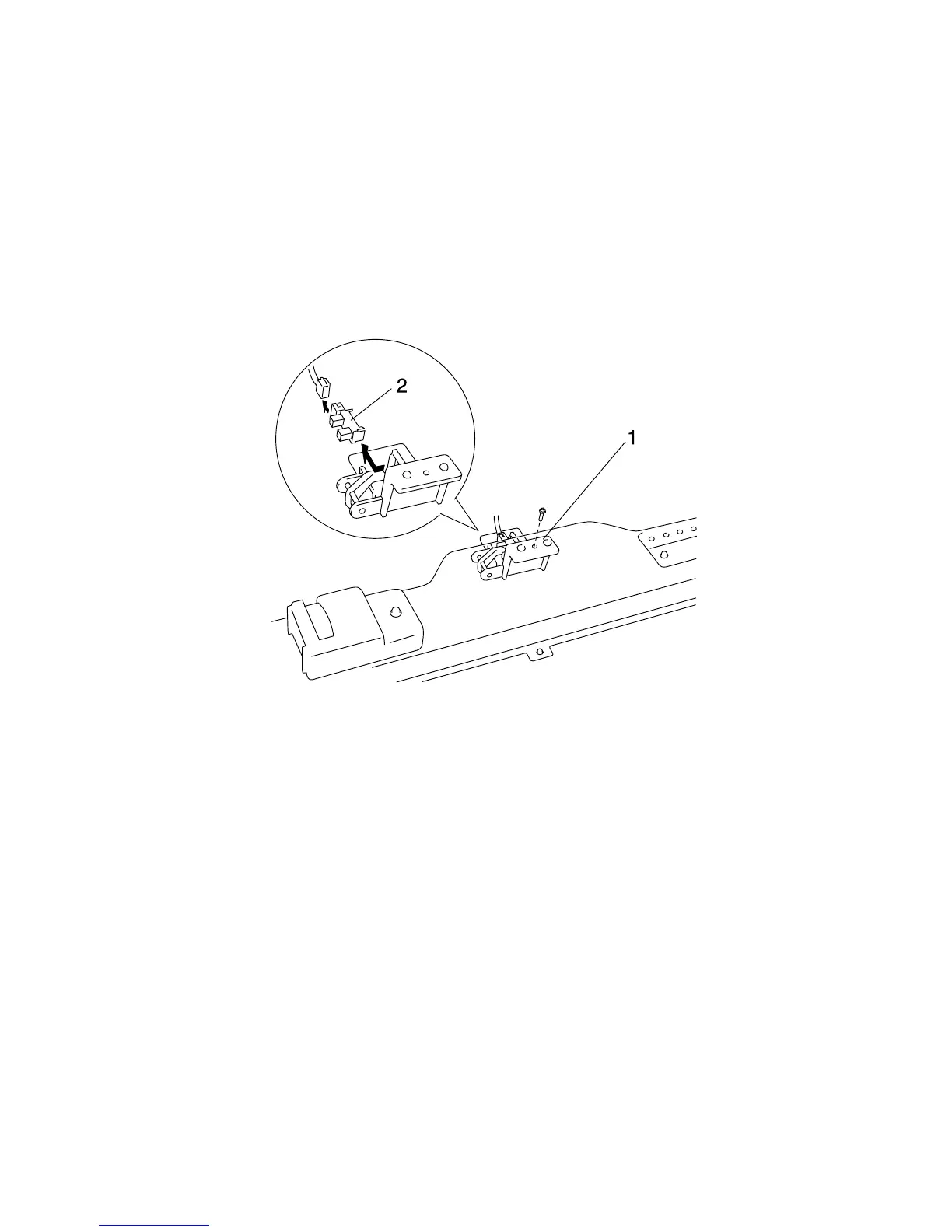

2. Remove the 1st cassette paper empty sensor assembly (1). (1
screw, 1 connector)
3. Remove the 1st cassette paper empty sensor PC4 (2).
