Lexmark Optra W810 - Paper Deck 2500-Sheet Tray 4 (LCC) Removal Procedures; Exterior Parts Removal

4-70 Service Manual
4023-001
Paper Deck 2500-Sheet Tray 4 (LCC) Removal
Procedures
Exterior Parts Removal

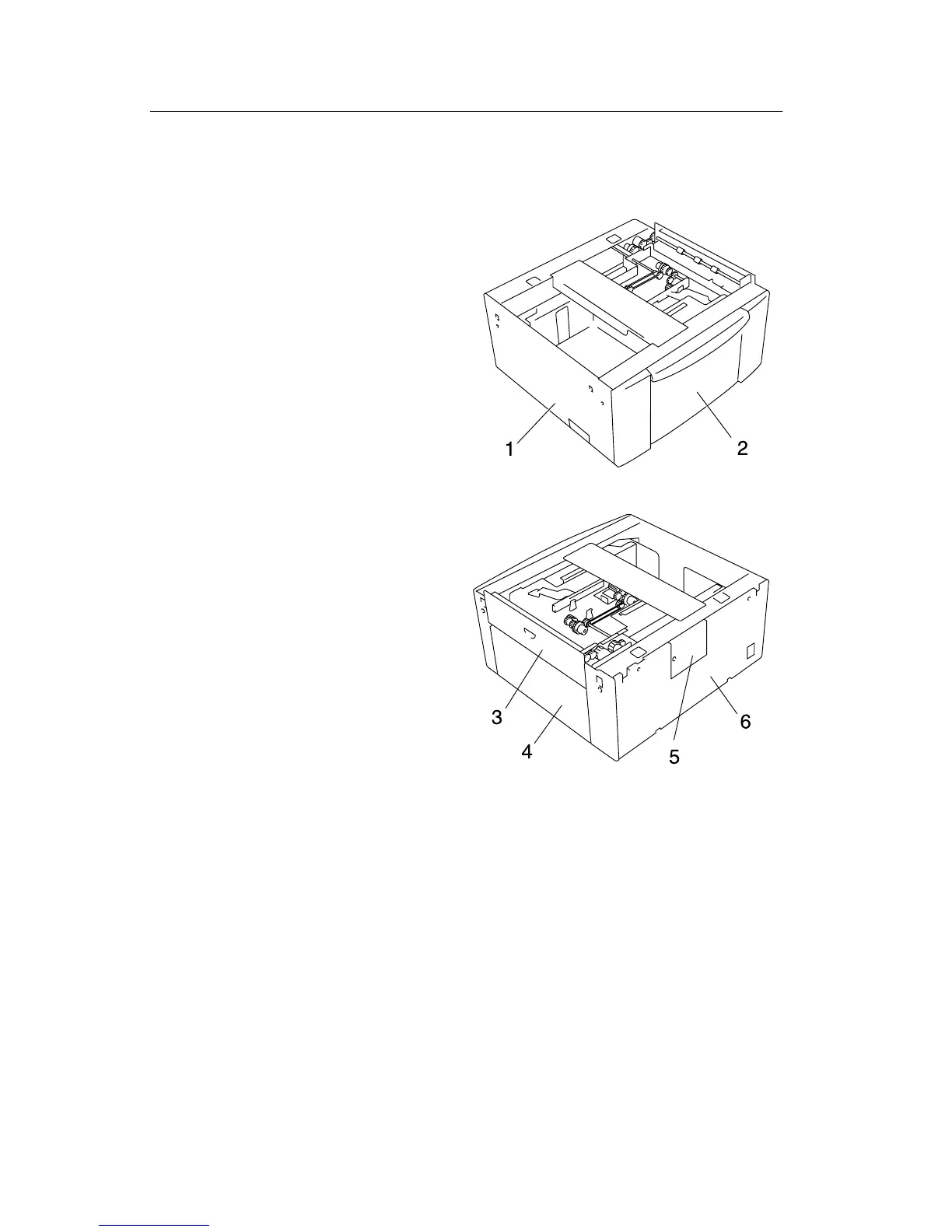

Left Cover (1) Removal
Remove 2 screws
Front Cover (2) Removal
Slide out the LCC and remove
3 screws.
Side Panel (3) Removal
Open the side panel.
Right cover (4) removal.
Remove 2 screws.
Maintenance Panel (5)
Removal
Remove 1 screw.
Rear Cover (6) Removal.
Remove 4 screws.
