5-32 Service Manual
4023-001

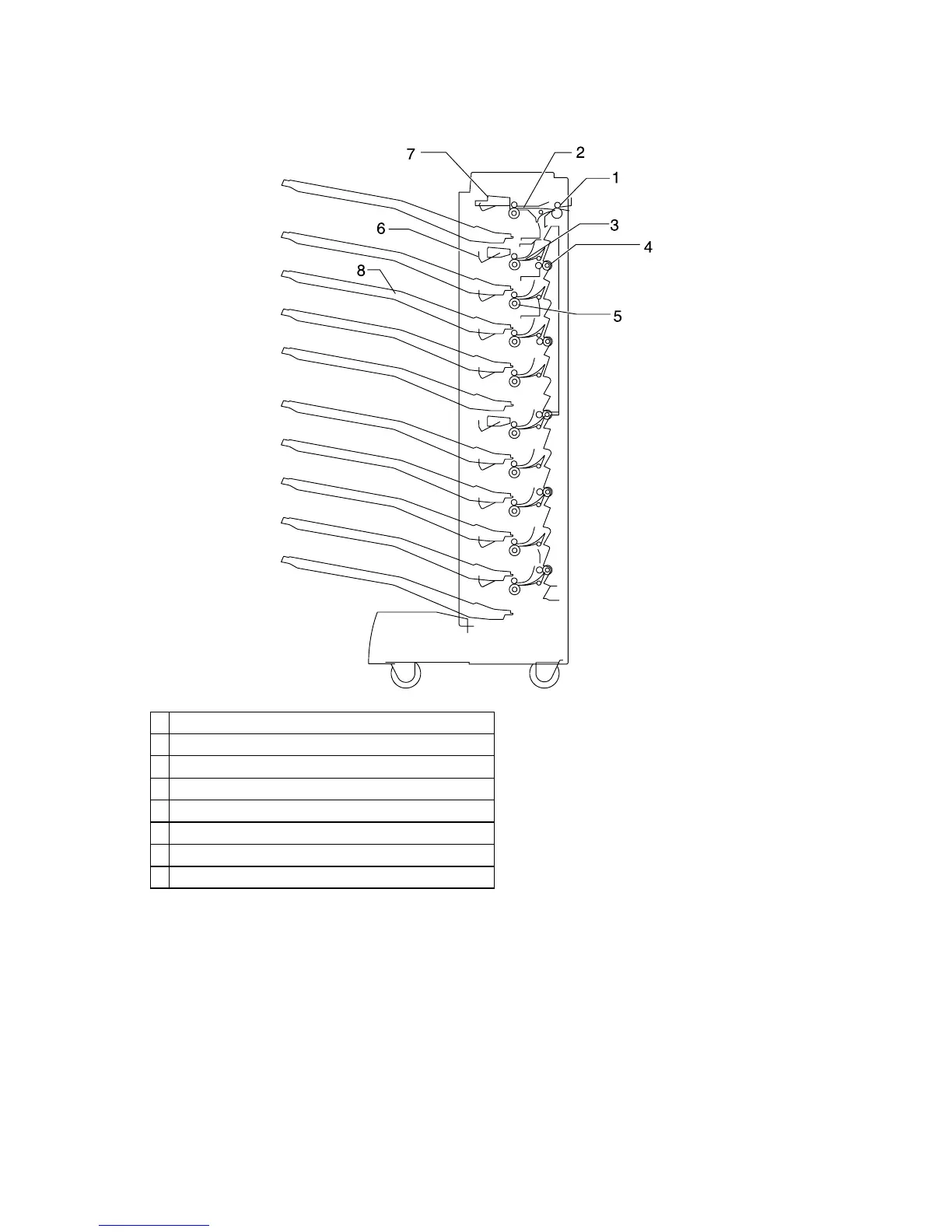

Mailbox Storage Unit: Cross-Sectional View
1 Entrance Roller
2 1st Bin Switching Deflector
3 2nd Bin Switching Deflector
4 Vertical Transport Roller
5Exit Roller
6 Paper Full Detecting Switch
7 Paper Empty Detecting Sensor Board
8 Bin Tray (1st to 10th bin, from the top)
