Lexmark Optra W810 - Paper Take-Up Rolls Removal

Repair Information 4-73
4023-001
Paper Take-Up Rolls Removal

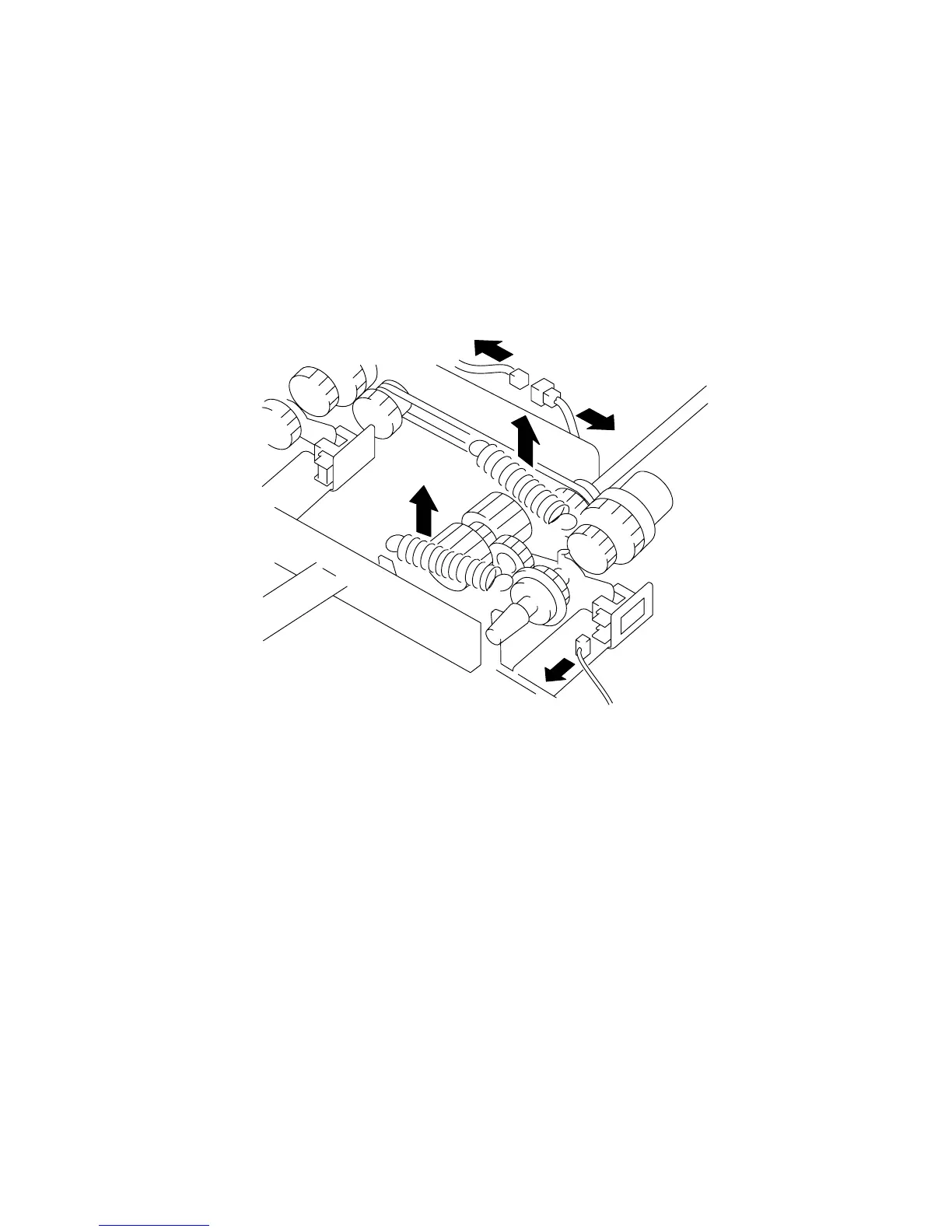

1. Remove the paper take-up unit. (See “Paper Take-Up Unit
Removal” on page 4-71.)
2. Unplug lift-up sensor 1 and take-up clutch 1 connectors of the
right paper take-up roll assembly.
3. Unhook 2 springs.
