General Information 1-59
4023-001

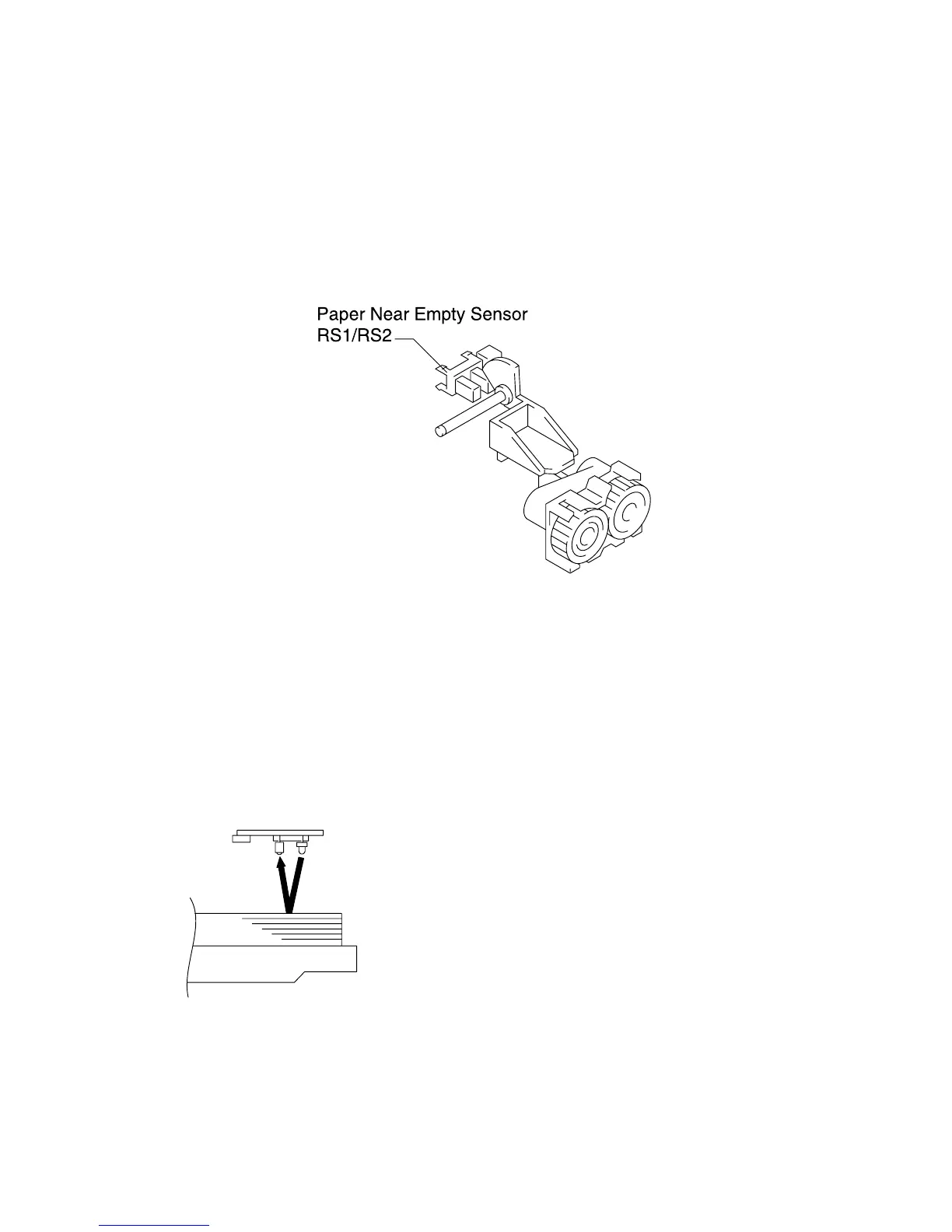

Paper Near Empty Detection
A paper-near-empty condition is detected by sensing the height of
lift 1 or lift 2. When paper is used during a print cycle, lift 1 or 2
gradually moves up. This eventually unblocks the paper near empty
sensor, indicating that the LCC (paper deck) is near empty.
Paper Empty Detection
Paper empty sensor 1 PPS1 and paper empty sensor 2 PPS2
(reflector-type photosensors), installed in the paper take-up unit,
detect the paper-empty condition. When a paper-empty condition is
detected, the corresponding message displays on the panel.
² When Paper is Loaded
The light from the LED of paper empty sensor 1
PPS1 or paper empty sensor 2 PPS2 reflects ind
cating that there is paper in LCC.
To Next Page
