1-56 Service Manual
4023-001
LCC-in-Position Detection

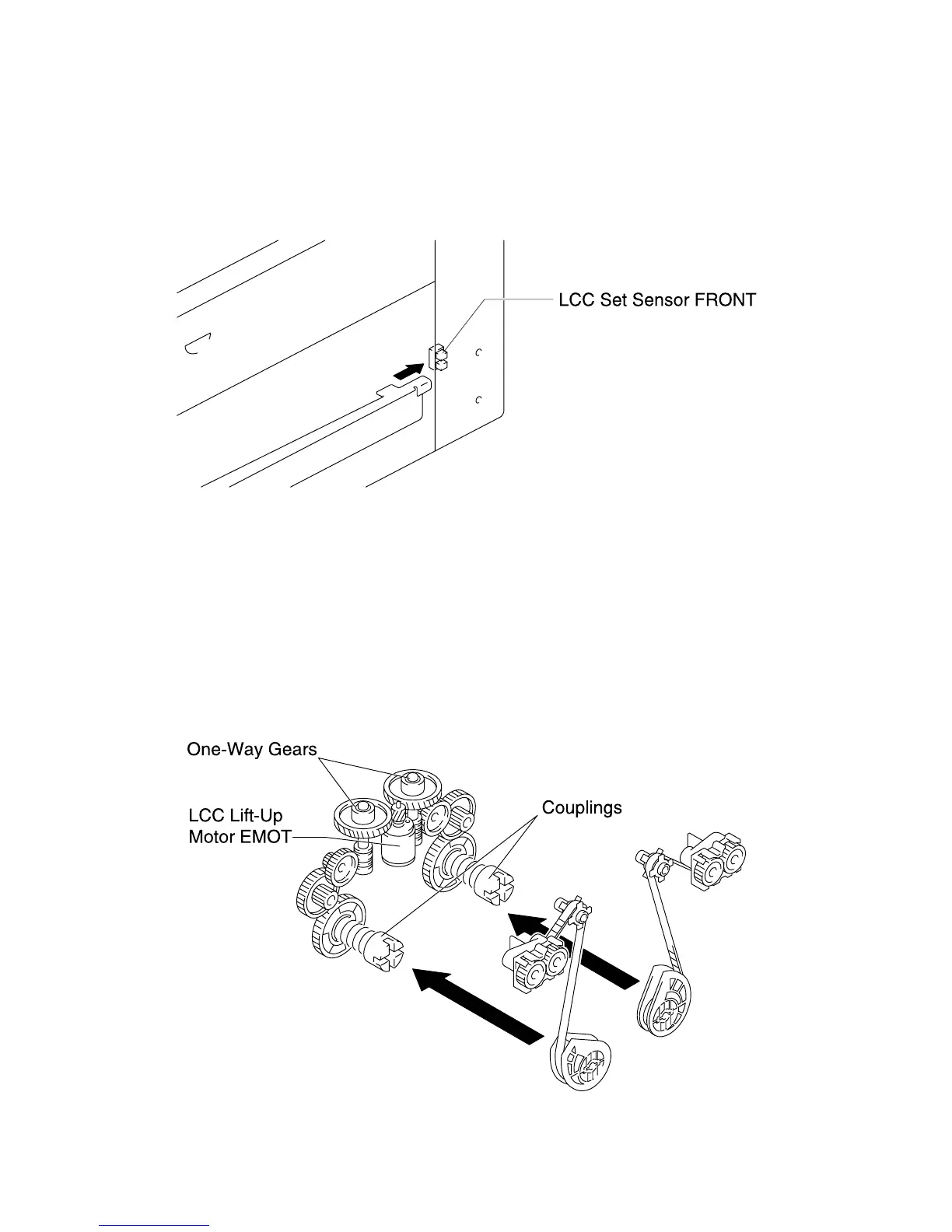

The LCC is detected at its closed position when the light blocking
plate located on the rear end of the right rail blocks LCC Set Sensor
FRONT.
Lifting Mechanism
When the LCC is slid into the printer, the couplings engage. The
LCC lift-up motor EMOT rotates forward and backward, turning the
one-way gear and gear train to raise Lift 1 and Lift 2 respectively.
Lift 1 and 2 drive mechanisms each contain a one-way gear. When
EMOT turns forward, drive transmits to Lift 1 and when the motor
turns backward, drive transmits to Lift 2.
