4-62 Service Manual
4023-001
500-Sheet Cassette (Tray 2 and 3) Control Board (PWB-
A2) Removal
1. Remove the toner cartridge.
2. Remove the rear cover. (6 screws)
3. Remove the right cartridge hopper cover. (1 screw)
4. Remove the cartridge hopper assembly. (4 screws, 2
connectors)
5. Remove the cartridge hopper housing assembly. (4 screws)

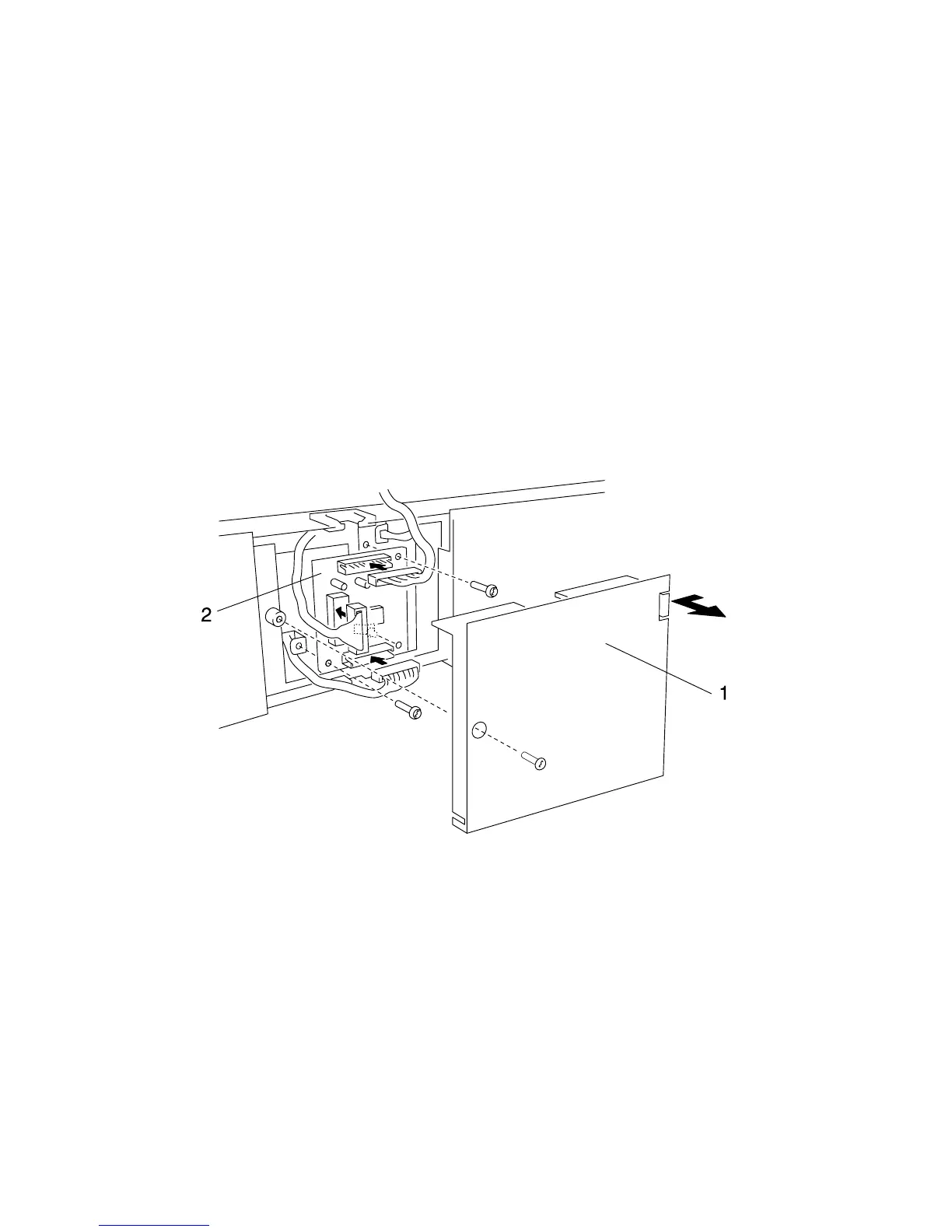

6. Push and hold right projection and remove the 2nd cassette
board cover (1). (1 screw)
7. Remove PWB-A2 (2). (2 screws, 2 connectors)
To Next Page
