Lexmark Optra W810 - Mailbox Horizontal Transport Unit: Electrical Components; Mailbox Horizontal Transport Unit: Mechanical Components

Locations 5-31
4023-001

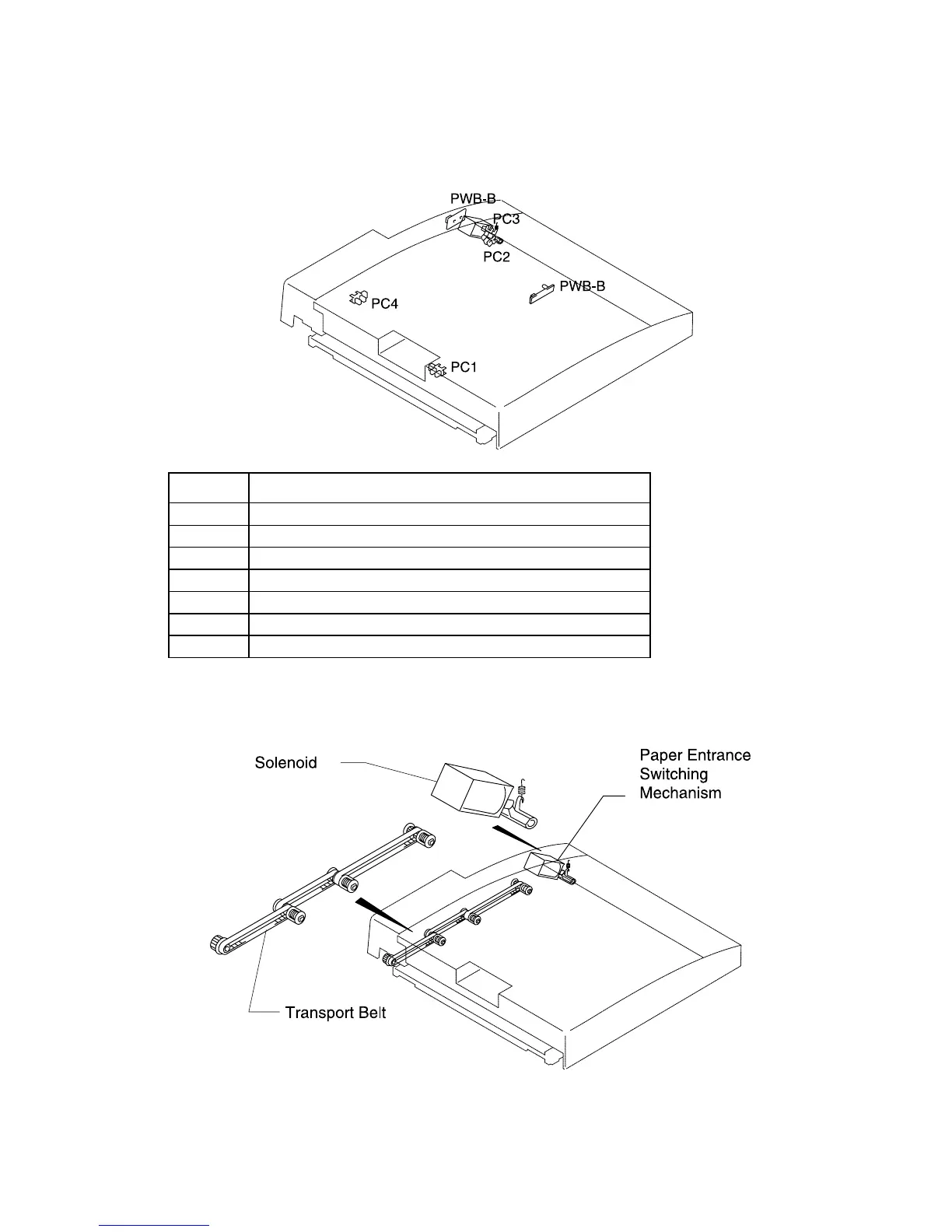

Mailbox Horizontal Transport Unit: Electrical
Components
Mailbox Horizontal Transport Unit: Mechanical
Components
Symbol Name
Solenoid
PC1 Horizontal Unit Paper Sensor
PC2 Non-Sort Tray Positioning Sensor
PC3 Sort Bin Positioning Sensor
PC4 Horizontal Unit Door Sensor
PWB-A Non-Sort Tray Paper Empty Sensor (PQ)
PWB-B Non-Sort Tray Paper Empty Sensor (LED)
