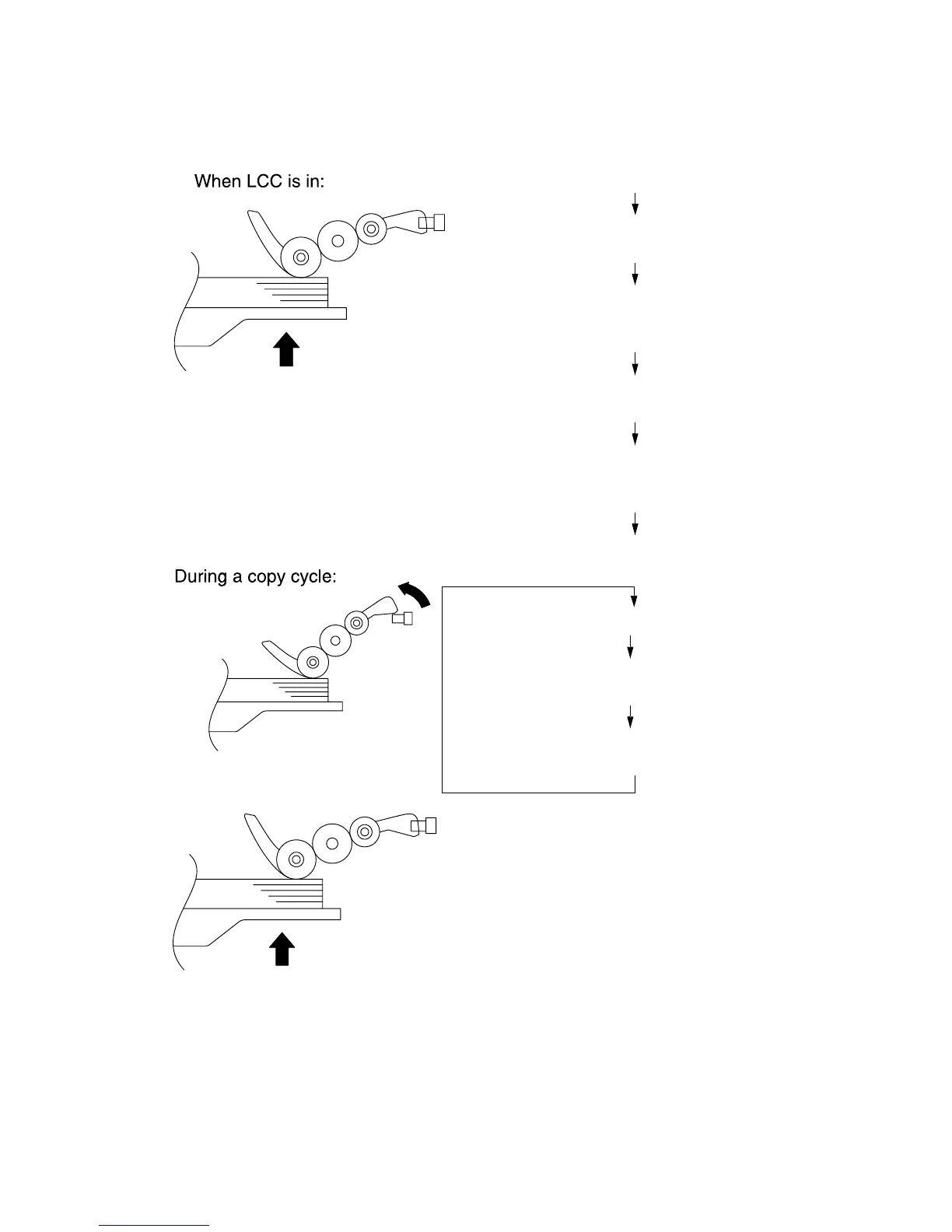

Lifting Operations
LCC set sensor FRONT is blocked.
LCC lift-up motor EMOT turns forward raising lift
1.
The paper stack causes the light blocking plate
the paper take-up roll 1 assembly to block lift-up
sensor 1 LS1.
EMOT de-energizes and then energizes to start
turning backward, raising Lift 2.
The paper stack causes the light blocking plate
the paper take-up roll 2 assembly to block lift-up
sensor 2 LS2.
EMOT de-energizes.
Paper is consumed as print cycles run.
The paper take-up roll gradually lowers,
unblocking the lift-up Sensor.
EMOT energizes and the lift raises. This lifts the
paper stack to block the lift-up sensor.
