Lexmark Optra W810 - Paper Take-Up Roll

General Information 1-25
4023-001

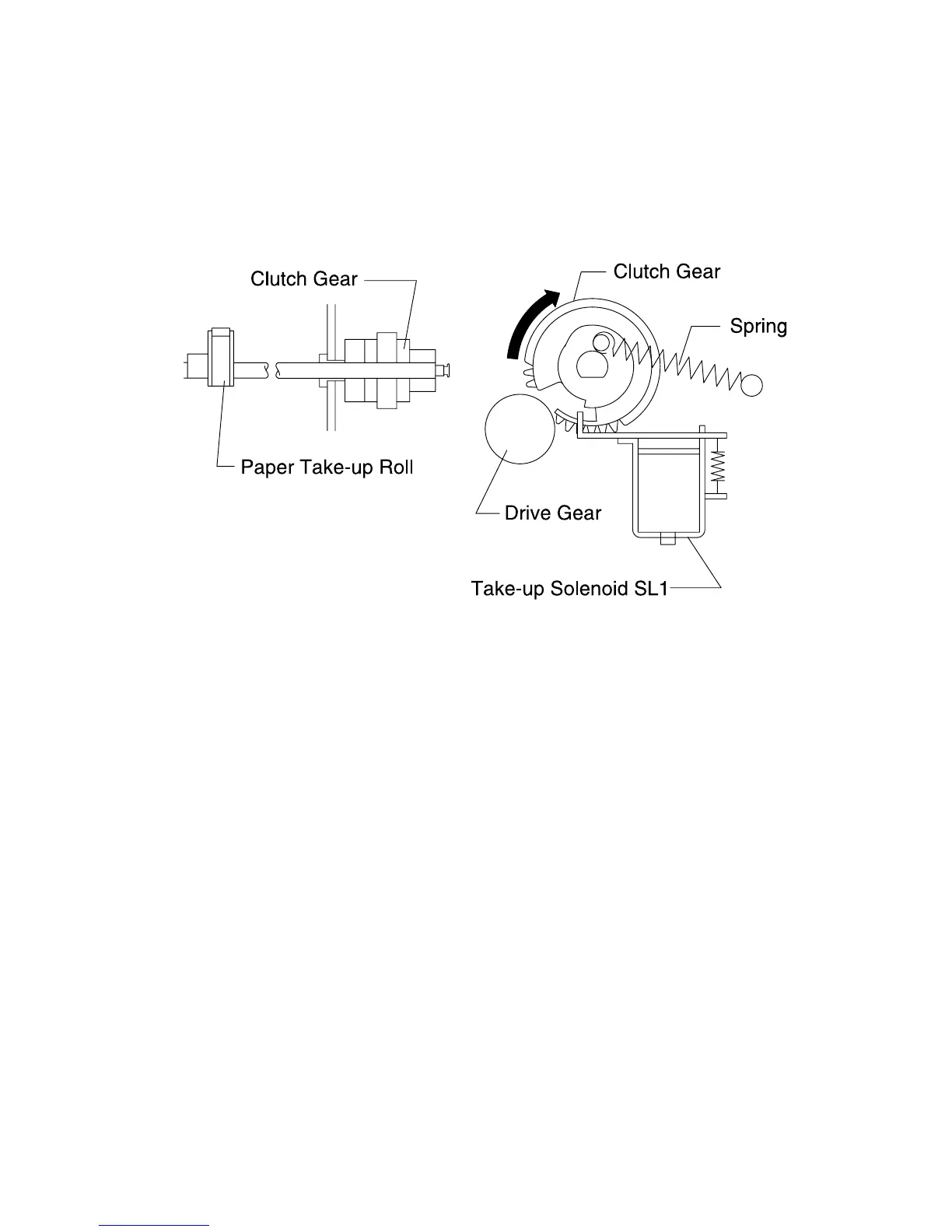

Paper Take-Up Roll
Two paper take-up rolls are mounted in both the fixed paper size
cassette and universal cassette. As the take-up solenoid energizes,
the spring tension increases, meshing the drive and clutch gear
which transmits drive to the paper take-up rolls.
